Constant Temperature Humidity Controlled Environment Climate Test Chamber Heating and Cooling
| Model | TH-80 (A~F) | TH-150 (A~F) | TH-225 (A~F) | TH-408 (A~F) | TH-800 (A~F) | TH-1000 (A~F) |
| Internal Dimension WxHxD (mm) | 400x500x 400 | 500x600x 500 | 600x750x 500 | 600x850x 800 | 1000x1000x 800 | 1000x1000x 1000 |
| External Dimension WxHxD (mm) | 950x1650 x950 | 1050x1750 x1050 | 1200x1900 x1150 | 1200x1950 x1350 | 1600x2000 x1450 | 1600x2100 x1450 |
| Temperature Range | Low Temperature(A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C) High Temperature 150°C |
| Humidity Range | 20%~98%R.H.(10%-98% R.H. / 5%-98% R.H.,is optional , need Dehumidifier) |
| Distribution Uniformity of temperature and humidity | ±2.0°C; ±3.0% R.H. |
| Control Accuracy of Temp. and Humi. | ±0.5°C; ±2.5% R.H. |

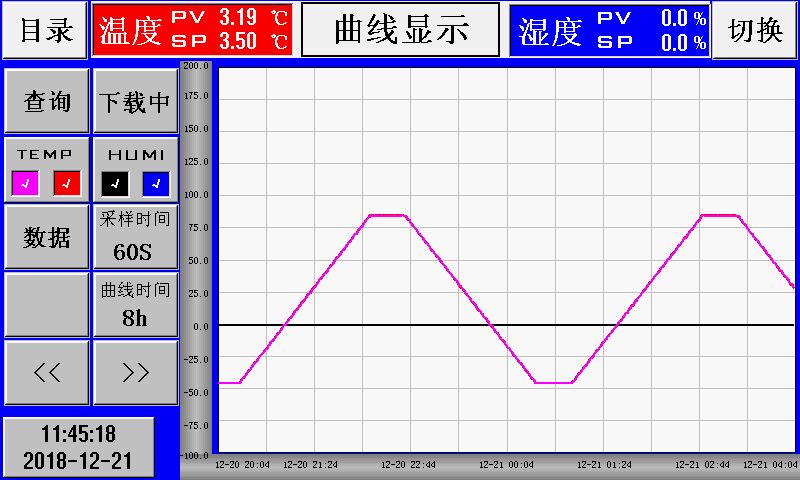

| Temperature Humidity Control Chart |  |
| Temperature Rising /Falling Velocity | Rising approx. 0.1~3.0°C/min; Falling approx. 0.1~1.5°C/min; ( Falling >1.5°C/min is optional) |
| Inner and Outer Material | Interior is SUS 304# stainless steel, exterior is stainless steel or see cold-rolled steel with paint coated. |
| Insulation Material | Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials |
| Cooling System | Wind cooledor water cooled; single segment compressor for -40°C, double segment compressor for -70°C |
| Protection Devices | Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection |
| Optional Accessories | Inner door with operation hole , Recorder, Water Purifier, Dehumidifier |
| Compressor | French Tecumseh Brand, Germany Bizer Brand |
| Power | AC220V 50/60HZ , AC380V 50/60HZ |
| Weight (Kg) | 150 | 180 | 250 | 320 | 400 | 450 |

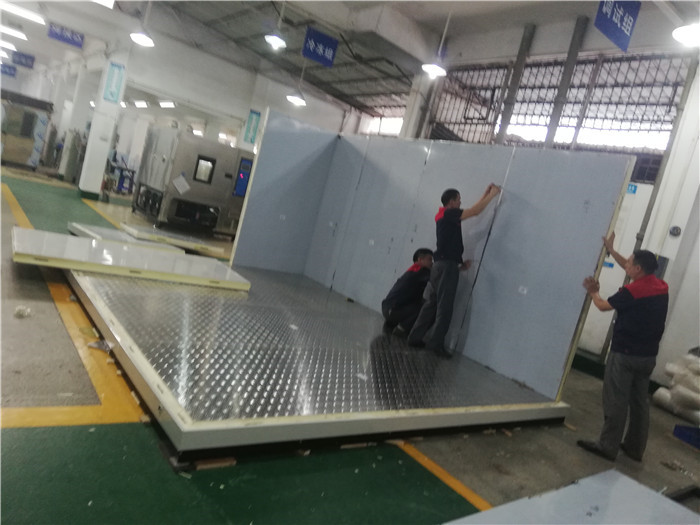

walk in stability environmental rooms Features:
1. Graceful appearance, circularly shaped body for , surface treated with mist strips and plane handle with no reaction. Our temperature humdity climatic chamber is easy to operate, safe and reliable.
2. Rectangular double-glassed watching window for the observation of the test production during the testing process.The window is equipped with sweat-proof electrical heating device that can prevent water steam from condensing into droplets, and with high brightness PL fluorescent bulbs to provide light inside the box.
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. The French Tecumseh brand is used for the circulation system of the compressor, capable of removing the lubricant between the condensation pipes and capillaries. The environment protecting coolant is used for the whole series (R23, R404A).

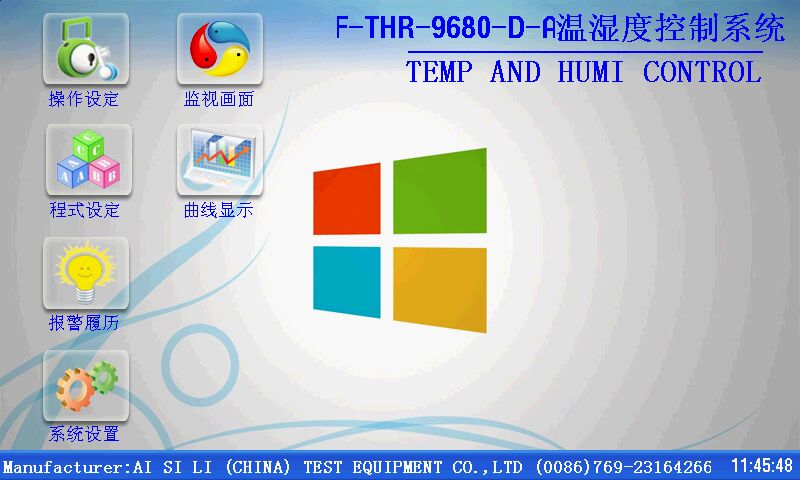

6. Imported LCD display screen, capable of displaying the measured value as well as the set value and time.
7. The controller of environmental chamber has the functions of multiples segment program editing, and of quick or slope control of temperature and humidity.
8. Inserted mobile pulley, convenient for movement an relocation, with strong positioning screws.
Applications for walk-in climatic test chamber:
constant temperature and humidity stability Test Chamber used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for for all types of electronic products,electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical,building materials, medical and aerospace industries.
If you have any quesiton about those walk-in temperature control room , please feel free to contact with us ,thank you .
