Single Wing Package Drop Tester / 300~1500mm Surface Drop Test Equipment

Product Categories

ASLi (CHINA) TEST EQUIPMENT CO., LTD

Contact Now

Single Wing Package Drop Tester / 300~1500mm Surface Drop Test Equipment

Name: Single Wing Package Drop Tester 3001500mm Surface Drop Test Equipment
Brand: ASLI
Price: 1 USD

China Single Wing Package Drop Tester / 300~1500mm Surface Drop Test Equipment wholesale

Brand Name : ASLI

Model Number : AS-DT-150

Certification : CE, ISO , SGS

Place of Origin : China

MOQ : 1 Set

Price : Negotiate

Payment Terms : T/T, Western Union

Supply Ability : 50 sets per month

Delivery Time : 20 workdays

Packaging Details : wooden case

Max. sample size : W1000*H800*D1000 mm

drop height : 300~1500mm

drop method : Face, edge, angle

material : Stainless Steel

New : 100%

Wing : single

Contact Now

Single Wing Package Drop Tester/ 300~1500mm Surface Drop Test Equipment

Technical Parameters

Model	AS-DT-150
Max. Weight of Test Samples	60kg
Height of Drop (mm)	300~1500mm
Max. Dimension of Test Sample	W1000xH800xD1000 mm
Falling Floor Size	W1700xH50xD1200mm
Drop Method	Face, edge, angle
Test Bench External Dimension	W1700xH2300xD1200mm
Weight (Kg)	600
Power	AC 380V

Product Description

1. The main axle of tester used dual axle rode, high precision and good stability. Power failure safety design, it will be kept the original condition under power cut and the swing arm will not break away unusually.
2. The Battery Cell Phone Electronic Products Drop Testing Machine has set limits upward and down, will not exceed safety range when testing.
3. Support arm with electronic reset capability, can avoid the accident by manual operation.
4. Multi-functional sample supporter: Can rapidly fix the different size package to test the package edges, sides and corners.
5. Micro adjusting control, can rapidly set to the needed testing height.

Application:

Battery Cell Phone Electronic Products Drop Testing Machine is applied to assess the package in the actual transportation, loading and unloading process by dropping the degree of impact, impact-resistant strength and evaluate the reasonable of packaging design.

Single Wing Package Drop Tester / 300~1500mm Surface Drop Test Equipment

Product Tags:

laboratory testing equipment

mechanical testing machine

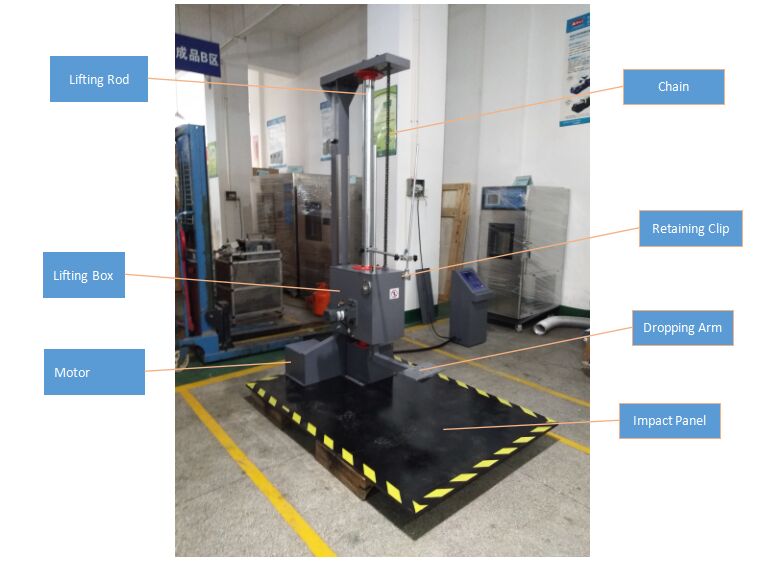

Single Wing Package Drop Tester / 300~1500mm Surface Drop Test Equipment Images
