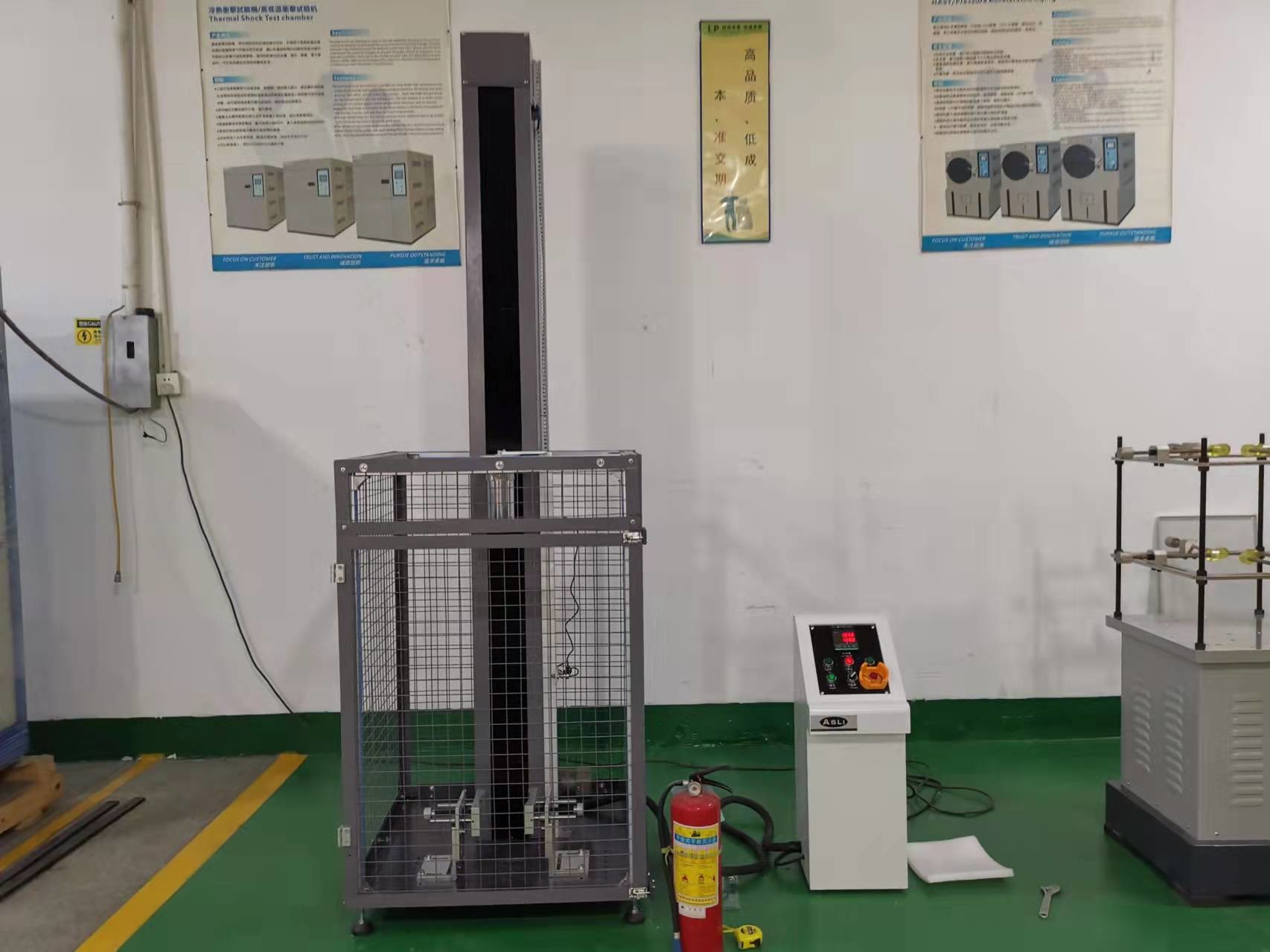

Fire Extinguisher Drop And Impact Testing Machine Electronic Dynamic Load

Fire extinguisher impact testing machine

One, scope of application:

1, suitable for different capacity fire extinguisher impact test. Principle:

a cylindrical flat bottom steel hammer is hung above the head of the fire extinguisher, with a diameter of 75mm and a weight of 4kg±0.1kg. The bottom surface of the steel hammer is adjustable from the top of the head of the fire extinguisher.

Meet the standards:

1, in line with GB4351.1-2005 "portable fire extinguisher", GB/T4351-2005 "Part 3: Inspection rules" test standards.

Three,

Main technical parameters:

1. The height between the bottom surface of the steel hammer and the top end of the fire extinguisher: 0.3~1.0m;

2, steel hammer specifications: diameter is 75mm, weight is 4kg±0.1kg;

3, rising speed: 500mm/min;

4, impact height positioning: limit switch;

5, rising height: AC motor drive;

6, steel hammer weight accuracy: ±0.1kg

7, height display: scale ruler, resolution is 1.0mm

8, working power supply: AC220V/50Hz; 120W

9, overall size: L450mm×W280mm×H2150mm

10, weight: about 260kg
