Battery , Mobile Phone , Electronic Products Drop Test Machine For Drop Testing ISO 2248

Name: Battery Mobile Phone Electronic Products Drop Test Machine For Drop Testing ISO 2248
Brand: ASLI
Price: 1 USD

China Battery , Mobile Phone , Electronic Products Drop Test Machine For Drop Testing ISO 2248 wholesale

Brand Name : ASLI

Model Number : AS-DT-150

Certification : CE, ISO , SGS

Place of Origin : China

MOQ : 1 Set

Price : Negotiate

Payment Terms : T/T, Western Union

Supply Ability : 50 sets per month

Delivery Time : 15 workdays

Packaging Details : wooden case

max. sample dimension : W1000xH800xD1000mm

drop height : 300~1500mm

Fall height error : equal or smaller than ±2%

standard : ISO2248, JIS Z0202-87

Application : Battery, Mobile Phone, Electronic Products

max. load : 60Kg

Contact Now

Drop Tester AS-DT-150.pdf

Battery, Mobile Phone, Electronic Products Drop Test Machine for Drop Testing ISO 2248

Product Description

Battery/ Mobile Phone /Electronic Products Drop Test Machine for Drop Testing ISO 2248 is used for evaluating the damage and impact resistance when handling and carrying a package, it is to do a free fall test for the area, angle and edge of the package. The tester equipped with a digital height display and decoder to do the height tracking, ensure to calculate a precision fall height, which the error has no greater than 2% or 10mm. The tester use single arm and double column structure, which can electric reset, electronic control and electronic lifting device, easy using and easy to set the sample.

Model	AS-DT-150
Max. Weight of Test Samples (Kg)	100
Height of Drop (mm)	300~1500
Max. Dimension of Test Sample WxHxD (mm)	1000x800x1000
Falling Floor Size WxHxD (mm)	1700x50x1200
Drop Method	Face, edge, angle
Test Bench External Dimension WxHxD (mm)	1700x2300x1200
Weight (Kg)	700

Drop Test Machine Feature

1. Advanced structure ensure that bracket and specimen separate freely and specimen drop freely through bracket rapid downward motion then rotation movement. It delivers perfect test for specimen side, edge and corner.
2. It uses electric reset, electronically controlling falling, electric lifting, which makes it is easy to operate.
3. High Accuracy, direct display
4. It is steady when it is dropping and lifting

If you need more information about Battery, Mobile Phone, Electronic Products Drop Test Machine for Drop Testing ISO 2248, please don't hesitate to send your inquiry.

Product Tags:

mechanical testing machine

laboratory test equipment

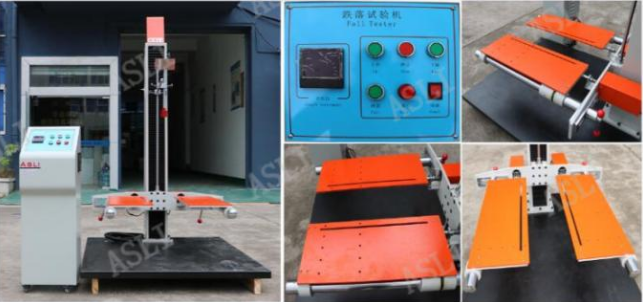

Battery , Mobile Phone , Electronic Products Drop Test Machine For Drop Testing ISO 2248 Images
