Transportation Vibration Test Bench / Vibrating Table / Lab Testing Equipment

Name: Transportation Vibration Test Bench Vibrating Table Lab Testing Equipment
Brand: ASLI
Price: 1 USD

China Transportation Vibration Test Bench / Vibrating Table / Lab Testing Equipment wholesale

Brand Name : ASLI

Model Number : AS-200

Certification : CE, ISO , SGS

Place of Origin : China

MOQ : 1 Set

Price : Negotiate

Payment Terms : T/T, Western Union

Supply Ability : 50 sets per month

Delivery Time : 15 workdays

Packaging Details : wooden case

max. load : 200kg

Effective Area : 1200*1000mm

Rotating Speed : 150~300RPM

Amplitude : 25.4mm

Time Setting : 0~999hours

mode of vibration : Reciprocating type

Contact Now

AS-600 Transportation Simulator Vibration Tester

Transportation Vibration Test Bench/Vibrating Table/Lab Testing Equipment

Features of cartons transportation vibrating table :

1. Unique design, easy to use
2. Low noise, with buffering function
3. Frame is powder coating, working table is stainless steel with aluminium alloy rail track

cartons transportation vibrating table of Technical Parameters :

Mode	AS-100	AS-200	AS-300	AS-600	AS-1000
Load (Kg)	100	200	300	600	1000
Effective Area WxD(mm)	1200×1000	1200×1000	1200×1300	1300×1400	1500×1500
Weight (Kg)	200	250	350	450	600
External DimensionWxHxD (mm)	1300×650×1300	1300×650×1300	1300×650×1400	1400×750×1500	1600×850×1600
Rotating Speed (RPM)	150~300
Amplitude	25.4mm(1inch), (Accord ASTM.IEC transport standard)
Time Setting (Approx.)	0~999hours
Mode of Vibration	Reciprocating type
Power	AC220V or according to the equipment specification

automotive sensor simulator tester with Application:

Simulated transport vibration tester is applied to test the vibration-resistance of packed Toys, electronics, furniture, gift, ceramics, equipment,etc., under simulated transport conditions, according to American and EU transport standard (ASTM, IEC).

Transportation Vibration Test Bench / Vibrating Table / Lab Testing Equipment

Product Tags:

laboratory testing equipment

laboratory test equipment

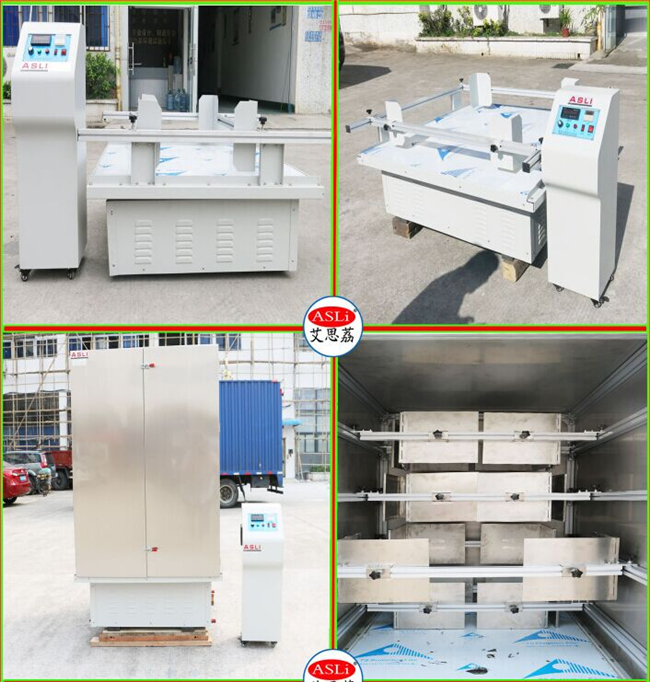

Transportation Vibration Test Bench / Vibrating Table / Lab Testing Equipment Images
