Home > Mechanical Shock Test Machine >

Package Simulating Transportation Vibration Tester ISO Certificated

ASLi (CHINA) TEST EQUIPMENT CO., LTD
Contact Now

Package Simulating Transportation Vibration Tester ISO Certificated

Brand Name : ASLi

Model Number : AS-200 / AS-1000

Certification : CE ,ISO ,SGS

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 100sets per month

Delivery Time : 15~20 workdays

Packaging Details : Standard Export Plywood Case

Load (Kg) : 100~1000

Weight (Kg) : 200~600

Rotating Speed (RPM) : 150~300

Time Setting (Approx.) : 0~999hours

Mode of Vibration : Reciprocating type

Power : AC220V or 380V

Contact Now

Package Simulating Transportation Vibration Tester ISO Certificated Factory​

Warranty: one year free warranty for whole set machine,lifelong time maintainance.

After-sale service: feedback within 8 hours after get the call or email.

Service:OEM service,Design service,Buyer lable service.

Certificate of these the machine:
China official 3rd party calibration report
CE certiification

Application of Transportation Vibration Simulation Tester​:

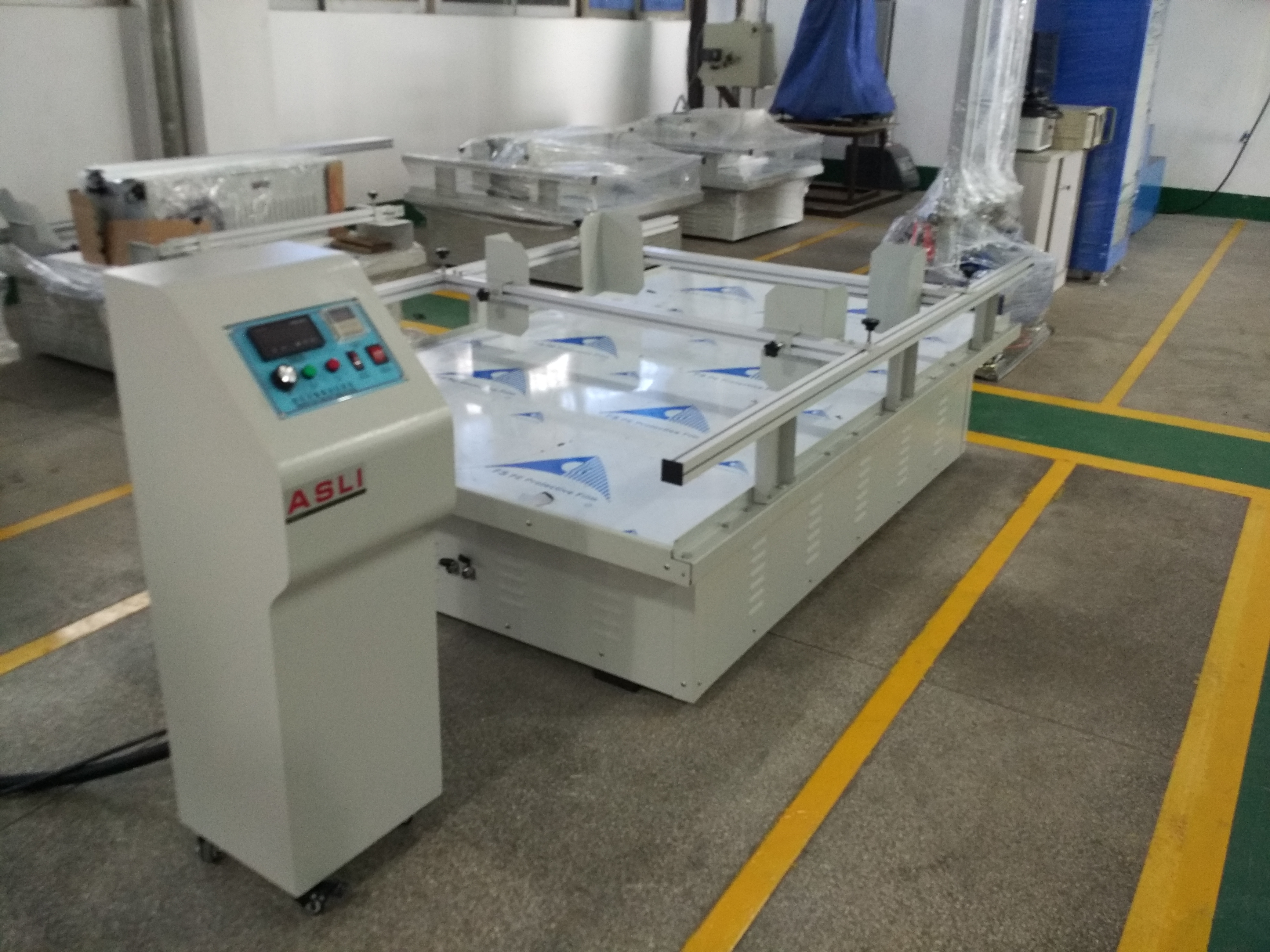

Package Simulating Transportation Vibrating Tester / Mechanical vibration tables is applied to test the vibration-resistance of packed Toys, electronics, furniture, gift, ceramics,equipment,etc., under simulated transport conditions, according to American and EU transport standard (ASTM,IEC).

Simulation Packaging Box Transportation Vibration Tester​ technical parameters:

Transport Simulate Vibration Tester Technical Parameters
Mode AS-100 AS-200 AS-300 AS-600 AS-1000
Load (Kg) 100 200 300 600 1000
Effective Area WxD (mm) 1200×1000 1200×1000 1200×1300 1300×1400 1500×1500
Weight (Kg) 200 250 350 450 600
External Dimension WxHxD (mm) 1300×650×1300 1300×650×1300 1300×650×1400 1400×750×1500 1600×850×1600
Rotating Speed (RPM) 150~300
Amplitude 25.4mm(1inch), (Accord ASTM.IEC transport standard)
Time Setting (Approx.) 0~999hours
Mode of Vibration Reciprocating type
Power AC220V or according to the equipment specification

Mechanical vibration tables features:

1. Unique design, easy to use

2. Low noise, with buffering function

3. Frame is powder coating, working table is stainless steel with aluminium alloyrail track

Package Simulating Transportation Vibration Tester ISO Certificated


For the package:
1. PP film first
2. Vacuum package
3. PP film again
4. 10mm thickness PU foam to avoid collision
5. stronged plywood case
6. Standard ASLI CASE MARK

Package Simulating Transportation Vibration Tester ISO Certificated

Customer visit ASLI Factory:

Package Simulating Transportation Vibration Tester ISO Certificated

Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine. Package Simulating Transportation Vibrating Tester / Mechanical vibration tables is our star products , and we had obtained the CE certification for this machine .

If you have any needs Vibration Testing Machine for Packages Cartons, please feel free to contact me.
