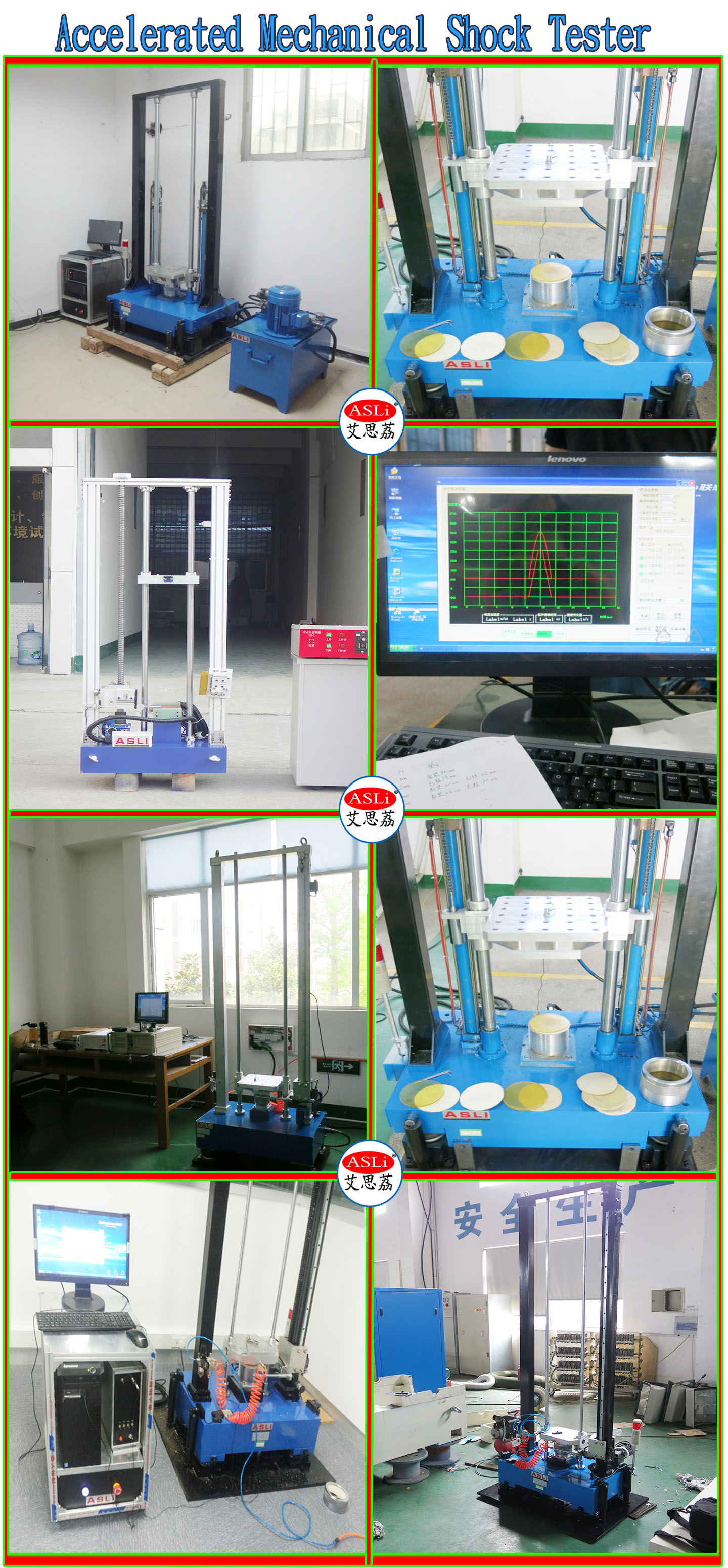

CE Certificated High Acceleration Mechanical Shock Test Machine Impact Test Equipment
Application:
High Acceleration Mechanical Shock Test Machine is mainly used for small products for impact test, to assess the product's ability to withstand shock damage. It is often used in electronic components, electronic circuit boards and other environmental testing.
Features:
1. Built-in self-protection device, no secondary impact,
2. Shock height controlled by digital
3. Good repeatability test data
4. Signal generator provides a variety of choice: half sine wave, trapezoidal wave, sawtooth wave, square wave, etc.
5. Good vibration isolation performance, impact on the environment can control within the scope of the requirements:
6. Good Safety performance.
7. Conform to the IEC, MIL, GJB, JIS, ASTM and other international and domestic standard shock waves;
Technical Parameters:
| Model | SS-5 | SS-10 | SS-25 | SS-50 | SS-100 | SS-200 | SS-400 |
| Max. Load Capacity (Kg) | 5 | 10 | 25 | 50 | 100 | 200 | 400 |
| Bench Size (mm) | 120×120 | 200×200 | 350×350 | 450×450 | 650×650 | 750×750 | 850x850 |
| Acceleration of shock peak value(m/s2) | Half Sine Wave | 150~15000 | 150~15000 | 150~15000 | 150~6000 | 150~6000 | 150~3500 | 150~1500 |
| Trapezoid Wave | 300~1000 | 300~1000 | 300~1000 | 300~1000 | 300~1000 | 300~1000 | 300~500 |
| Sawtooth Wave | 150~1000 | 150~1000 | 150~1000 | 150~1000 | 150~1000 | 150~1000 | 150~500 |
| Pulse width | Half Sine Wave | 0.5~18 | 0.6~18 | 0.8~25 | 1.5~30 | 1.5~30 | 2~30 | 6~30 |
| Trapezoid Wave | 6~12 | 6~12 | 6~18 | 6~12 | 6~12 | 6~12 | 6~12 |
| Sawtooth Wave | 6~18 | 6~18 | 6~18 | 6~18 | 6~18 | 6~18 | 6~18 |
| Drive Mode | Mechanical drive | Hydraulic drive |
| External Dimension WxHxD (mm) | 800x2200x900 | 800x2200x900 | 850x2250x950 | 1000x2600x1300 | 1100x2700x1400 | 1300x2700x1600 | 1300x2700x1650 |
| WEIGHT (Kg) | 600 | 700 | 900 | 2600 | 3300 | 4000 | 4500 |
| Hydraulic Oil | No #46 hydraulic oil |
| Power | AC380V, 3∮ 5 lines |
Packaging & Shipping:
Standard export wooden case, plywood case or according to customer's requirement.
Company Information:
Warranty: one year free warranty for whole set machine,lifelong time maintainance.
After-sale service: feedback within 8 hours after get the call or email.
Service:OEM service,Design service,Buyer lable service.
ASLi main products: Environmental chambers, temperature (humidity) chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in stability chamber,Vacuum oven,Altitude chamber,vibration test system, mechanical shock tester,environmental combined vibration chamber,etc
FAQ:
1. Are your company a trading one or a factory?
Factory ,28 years focusing on test instruments field,4 years exporting experience.
2. After an order is placed, when to deliver?
Generally about 20 workdays, If we have finished products, we can arrange shipment within 3 workdays.
Please be aware that our production lead times depend on specific items and item quantities.
3. What about the warranty with after - sales services?
12 months warranty.
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
4. What about the services and product' quality?
Service: OEM service,Design service,Buyer lable service.
Quality: Each instruments must be carried out 100% quality examination and test, the finished products must through a third party calibration institutions before shipping and delivery goods.
5. How to install and training?
If the products is easy to install and training, customers can learn the operation and maintenance manual to installation and use.
If the products is hard to use, customers can come ASLi factory to learn how to installation and use. And our engineers have a passport, we can go to overseas.
6.What's your main products?
Environmental chambers, temperature (humidity) chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in stability chamber,Vacuum oven,Altitude chamber,vibration test system, mechanical shock tester,environmental combined vibration chamber,etc.
Welcome to visit our factory ! Any questions , Please feel free to contact us !
Accelerated Mechanical Shock Tester.pdf
