Light Resistant Aging Testing Instrument UV Aging Chamber , UV Accelerated Aging Tester

Name: Light Resistant Aging Testing Instrument UV Aging Chamber UV Accelerated Aging Tester
Brand: ASLI
Price: 1 USD

China Light Resistant Aging Testing Instrument UV Aging Chamber , UV Accelerated Aging Tester wholesale

Brand Name : ASLI

Model Number : UV-290

Certification : CE, ISO , SGS

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 100 sets per month

Delivery Time : 15 workdays

Packaging Details : standard export plywood case

Internal Dimension : W1150xH500xD500mm

Applicable Standard : GB/T16422,GB/T5170.9

Temperature Range : R.T.+15℃~+70℃

Temperature Fluctuation : +/-0.5℃

Humidity Range : bigger than 95%R.H.

Test Light Source : UVA, UVB

Material : Stainless steel

Power : AC220V

Contact Now

GB/T16422,GB/T5170.9 Accelerated Aging Instrument Plastic UV Aging Test Chamber

Technical Parameters

Model		UV-290
Internal Dimension WxHxD (mm)		1150x500x500
External Dimension WxHxD (mm)		1400x1600x750
Applicable Standard		GB/T16422,GB/T5170.9
Temperature Range		R.T.+15°C~+70°C
Temperature Fluctuation		±0.5°C
Humidity Range		≥95%R.H.
Environmental Temperature for Use		+5°C~+35°C
Test Light Source		UVA,UVB UV light
Wave Length of Test light Source (nm)		280~400
Center Distance between Sample and Tube (mm)		50±2
Center Distance Between Tubes (mm)		75±2
Material of Internal Case		Stainless steel with sanding polish
Material of External Case		Stainless steel with sanding polish or painting coated
Heating and Humidifier		Electric-heat type steam generator ,heating and humidification
Safety System	Operation Interface	Digital smarts touch key input (Programmable)
	Running Mode	Program/constant running type
	Input	Black panel thermometer.PT-100 Sensor
Standard Configuration		1 pc Stainless steel shelves
Safety Configuration		Protection of electric leakage, power outage when over-load, over-temperature protection, water short storage, ground lead protection
Power		AC220V 1 phase 3 lines, 50HZ

Product Description

GB/T16422,GB/T5170.9 Accelerated Aging Instrument Plastic UV Aging Test Chamber can simulate the sun, rain and dew to damage the material, UV machine using UV lamp simulate the effect of sunlight, cold rain and dew. Being tested materials are placed in a certain environment which the light and moisture are alternating. The materials are tested for several days or weeks, you can know the damage of material at outside for several months or several years, Damage types include: bleaching, discoloration, loss of light, powder, crack, turbidity, bubble-based, embrittlement, strength decline and oxidation.

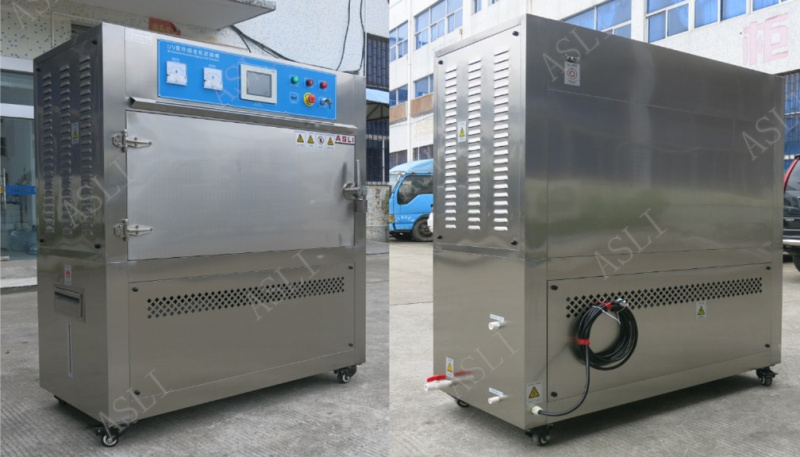

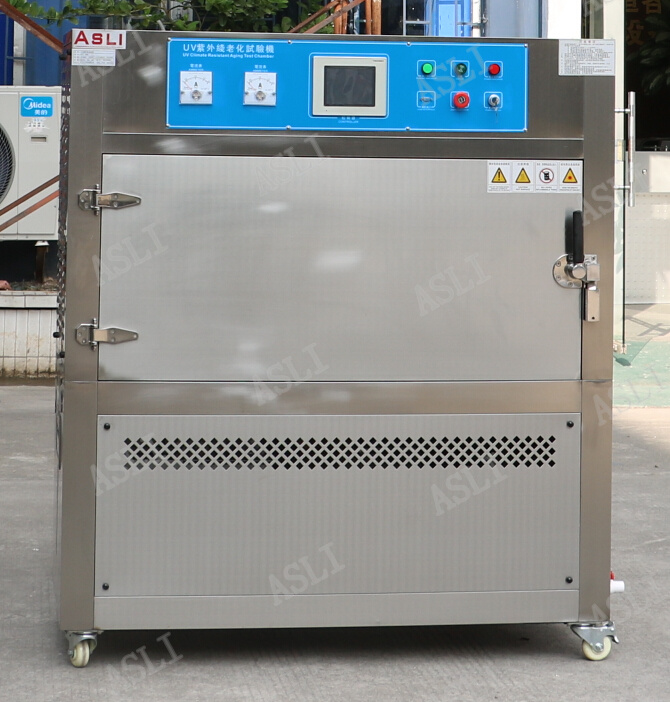

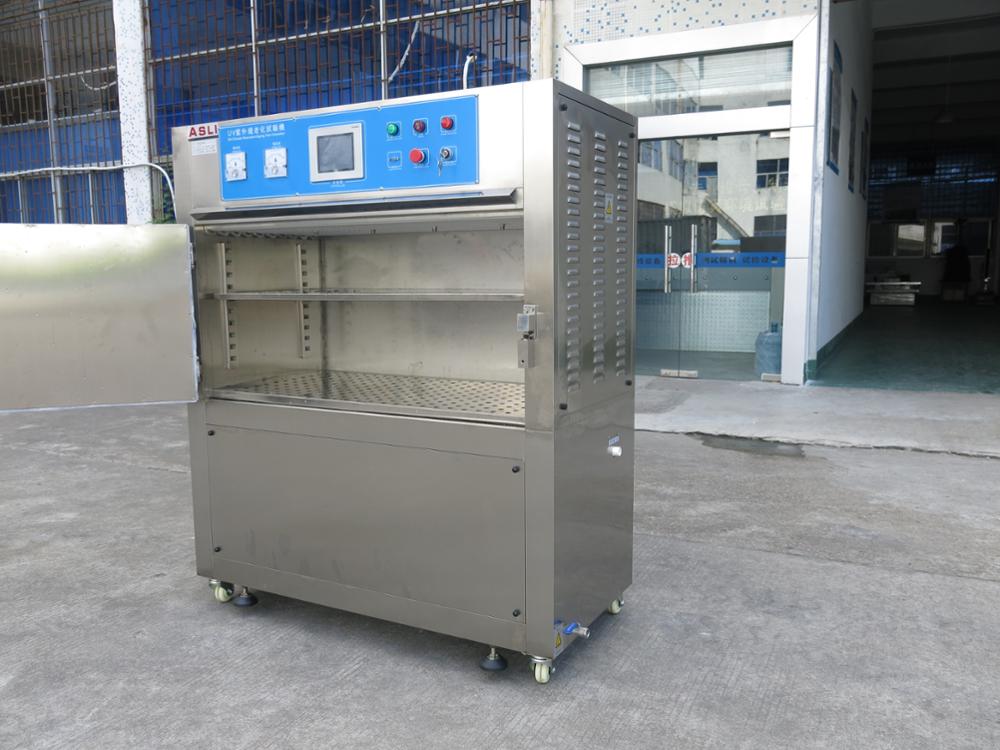

GB/T16422,GB/T5170.9 Accelerated Aging Instrument Plastic UV Aging Test Chamber Pictures

Light Resistant Aging Testing Instrument UV Aging Chamber , UV Accelerated Aging Tester

Corresponding standard

Accord with ASTMG53-77/ GB/GJB/MIL/ASTM/CNS/IEC/JIS/AATCC/DIN/Fed Test/BS/SAE

Applicable industries

GB/T16422,GB/T5170.9 Accelerated Aging Instrument Plastic UV Aging Test Chamber is widely used in paint, resins, plastics, printing and packaging, aluminum, adhesives, auto, cosmetics, metals, electronics, electroplating, medicine, etc..

Our Company

We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechanical vibration and shock testing machine. Constant Electronic Temperature Humidity Cycling Test Chamber is our star products , and we had obtained the CE certification for this machine

Our Service

1.High quality guarantee.
2.Shipment with professional documents.
3.Packing as your request, with photo before shipment.
4.Reply within 48 hours and provide solution within 3 working days
5.Professional after-service from our engineers.
6.Warranty period 12 months

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shipment.

If you have another question, please feel free to contact us as below:
