280 ~ 400nm Accelerated Weathering UV aging test chamber
Irradiance Range 30 ~ 70°C BPT

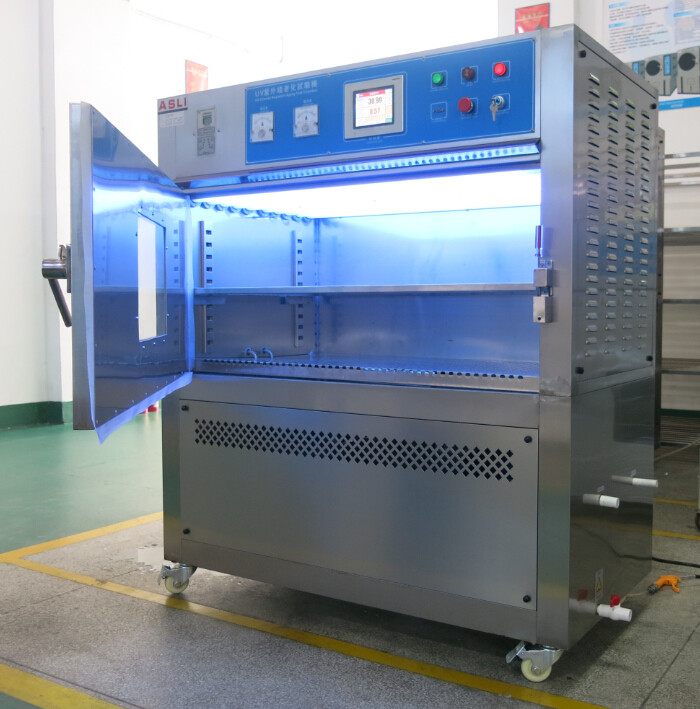

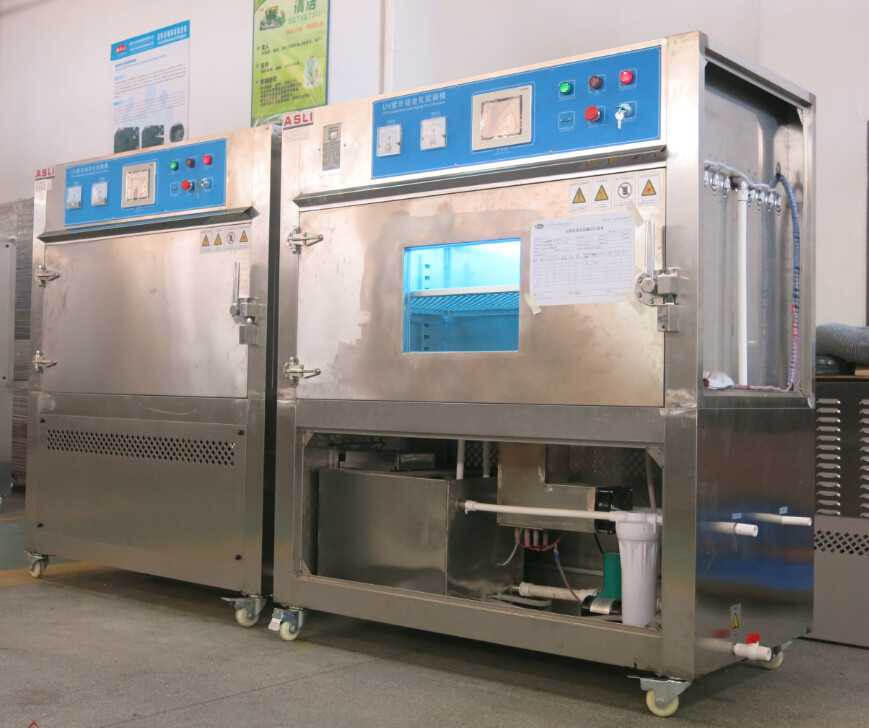

280 ~ 400nm Accelerated Weathering UV aging test chamber Irradiance Range 30 ~ 70°C BPT is equipped with fluorescent UV lamp which can completely simulate the UV spectra of sunlight, exposes materials to alternating cycles of UV light and moisture at controlled, elevated temperatures. It simulates dew and rain with condensing humidity and/or water spray.
280~400nm UV Simulated Sunlight Aging Testing Chamber Controller:
Programmable LCD Touch display controller which control temperature,
humidity, water spraying and irradiance.
Controller shows 10 pieces of UV lamp working time.
UV Chamber Water supply
Automatic water supply, Water purification system, Water saving
Water tank size is 50 Liter.
UV Chamber Sensors
Temperature sensor PT-100 A class
Resolution: ± 0.01 °C
Humidity sensor Dry and wet bulb sensors
Resolution: ± 1%RH
Irradiance Radiometer (UV-SI-260)
UV Chamber UV Lamp
Chamber equipped with 8 pieces of UV lamp, which is air cooling.
1 of UV Lamp Power is 40W,
Lamp length: 1160mm
UV lamp service life is 1600hours.
Over 1600 hours, must change new lamp.
UV Chamber Safety protection
Humidifier dry-combustion protection
Independent over-temperature protection,
Water shortage protection
Over-current protection
Over-current circuit breaker
Earth leakage protection and so on
UV Chamber Power supply and Wiring
220V, 50 Hz 10% +/-
One-phase Three Lines
UV Chamber Technical Parameters
| Model | UV-290 |
| Internal dimensions (mm) | 1150*500*500 |
| Overall dimensions (mm) | 1400*1600*750 |
| Temperature range | Ambient~90°C |
| Humidity range | ≥95%R.H |
| Water Spray | Spraying water |
| BPT | 30~70°C |
| Irradiance range | N/A |
| Distance between Specimen and lamp | 50mm |
| UV wavelength | 320nm~400nm UV-A |
| 280nm~320nm UV-B |
| Lamp power | 40W/unit , 10 Pcs with unit chamber |
| Power Supply | 220V 50HZ; |
| Power | 4.0(KW) |
Circuit Control System:
1.Controller with LED digital screen display, high precision.
2.With power off memory function, can continue the remaining testing procedure when power on.
3.Temperature control with P.I.D.+S.S.R, synchronized with the control system, thus improve the components stability and life expectancy.
4.Button type setting, digital and direct display
5.With P.I.D automatic calculation function, reduce the artificial setting inconvenience.
6.Light, condensation and spray can be independently and alternate cycle controlled.
Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
Warranty: one year free warranty for whole set machine,lifelong time maintainance.
After-sale service: feedback within 8 hours after get the call or email.
Service:OEM service,Design service,Buyer lable service.
