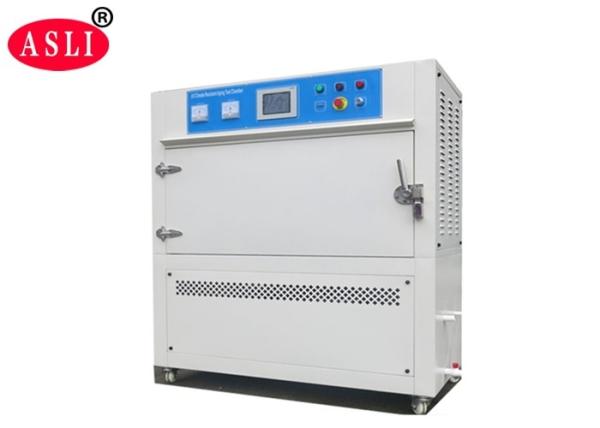

CE Standard UV Aging Test Chamber Simulated Climate Electric Test Chamber For Industrial
Test Requirement:
Method: Put the specimens into the UV aging chamber according national standard and IEC61215UL1703,using 340nm wavelength UV for component and raw materialradiation.
Application:

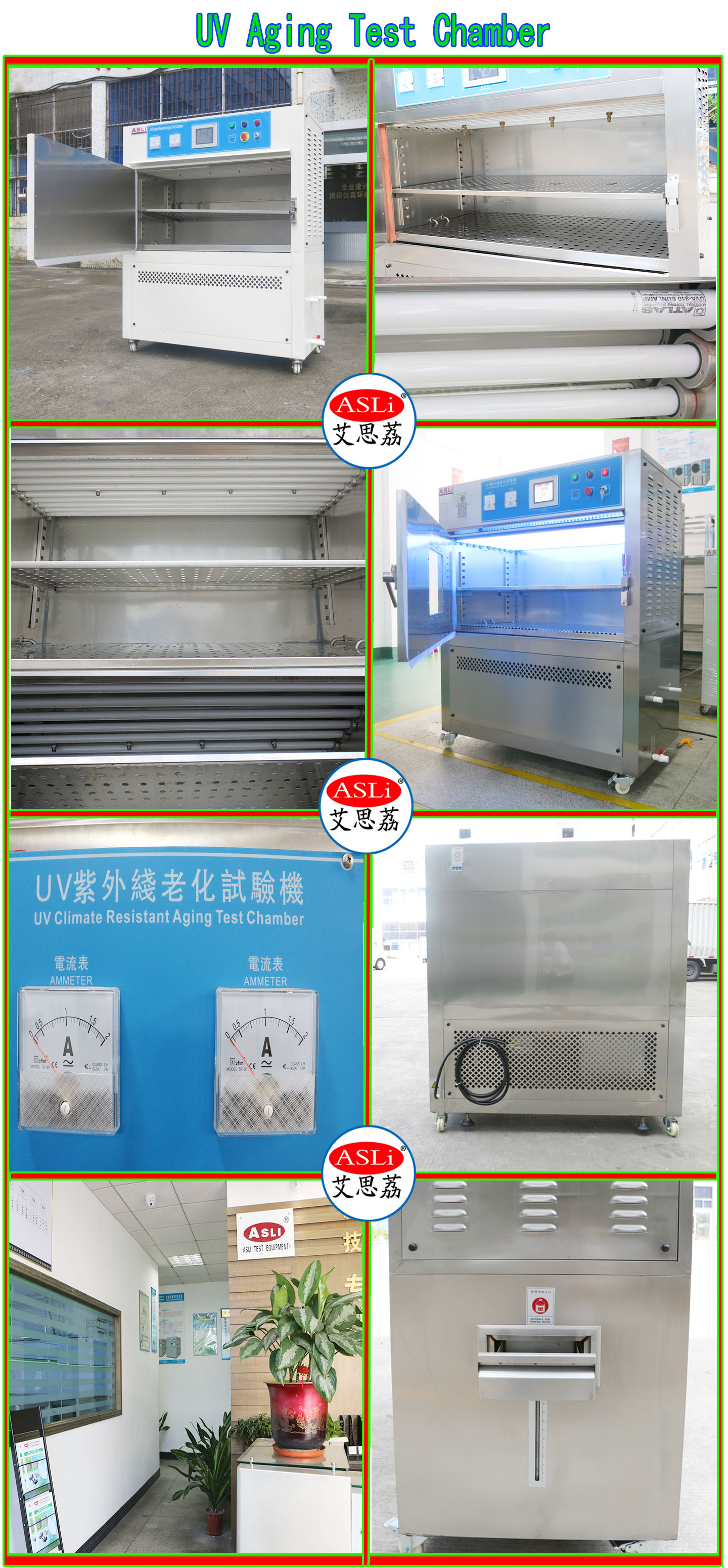

Standard UV Aging Test Chamber simulates the sunlight damage on the material and product, it is widely used in the evaluation of material climate resistantance.
Features:
1. Can record the temperature, humidity, arc light voltage, arc light current, BT black ball temperature and arc light in the same time.
2. 60H continuous testing.
3. BT black ball temperature digital display, damper regulator can be controlled for stable of black ball's temperature.
4. Unique DEW design
5.All data use digital display for long time management.
6. Adopt carbon arc Intensity detector, to keep the wave length in standard range.
Technical Parameters:
| Model | UV-290 |
| Internal Dimension | W1150xH500xD500(mm) |
| External Dimension | W1350xH1500xD600(mm) |
| ApplicableStandard | GB/T16422,GB/T5170.9 |
| TemperatureRange | R.T.+10℃~+70℃ |
| Temperature Fluctuation | ±0.5℃ |
| HumidityRange | ≥95%R.H. |
| Environmental Temperature for Use | +5℃~+35℃ |
| Test Light Source | UVA,UVB UV light |
Wave Length of
Test light Source (nm) | 280~400 |
Center Distance
between Sample and Tube (mm) | 50±2 |
Center Distance
Between Tubes (mm) | 75±2 |
| Material of Internal Case | Stainless steel with sanding polish |
| Material of External Case | Stainless steel with sanding polish or painting coated |
| Heating the Humidifier | Electric-heat type steam generator ,heating and humidification |
| Safety System | Operation Interface | Digital smarts touch key input (Programmable) |
| Running Mode | Program/constant running type |
| Input | Black panel thermometer.PT-100 Sensor |
| Standard Configuration | 1 pc Stainless steel shelves |
| Safety Configuration | Protection of electric leakage, power outage when over-load, over-temperature protection, water short storage, touch the ground protection |
| Power | AC220V 1∮3 lines, 50HZ |
Warranty: one year free warranty for whole set machine,lifelong time maintainance.
After-sale service: feedback within 8 hours after get the call or email.
Service:OEM service,Design service,Buyer lable service.
Packaging & Shipping:
Standard export wooden case, plywood case or according to customer's requirement.
Company Information:

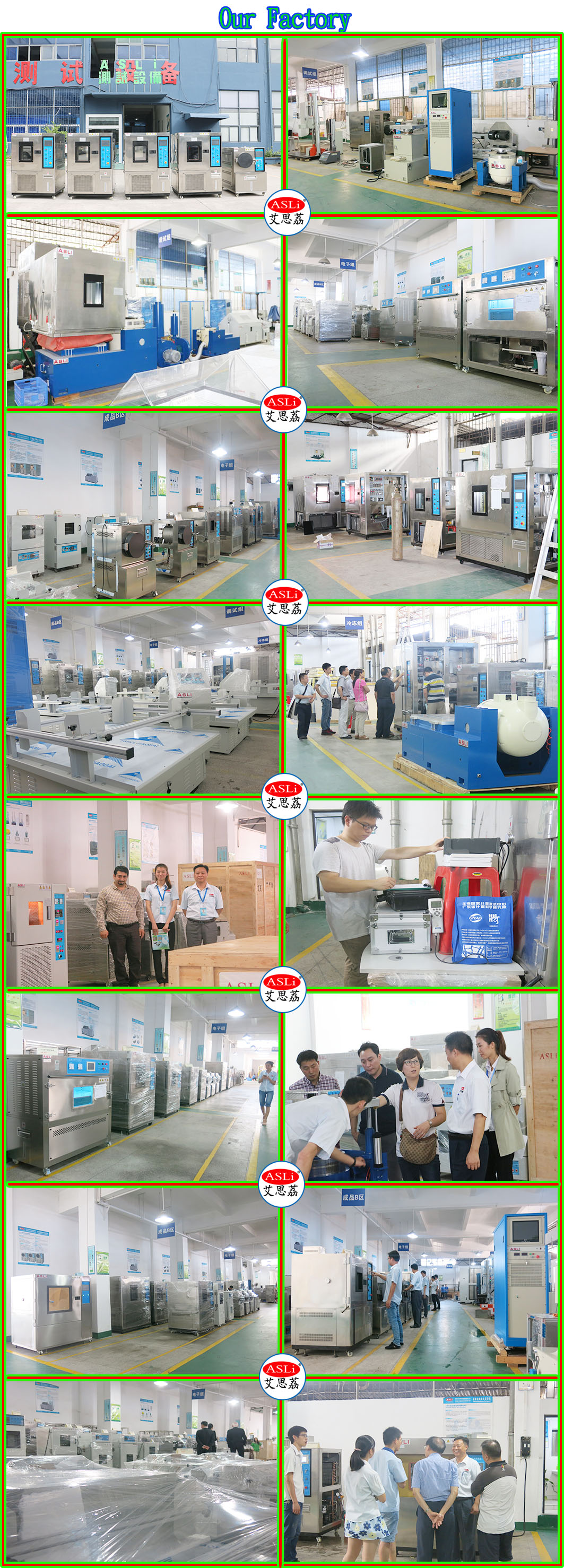

Welcome to visit our factory ! Any questions , Please feel free to contact us !
UV test chamber.pdf
Product Tags:
|
|
Simulated Climate Electric UV Aging Test Chamber For Industrial CE Standard Images
|
