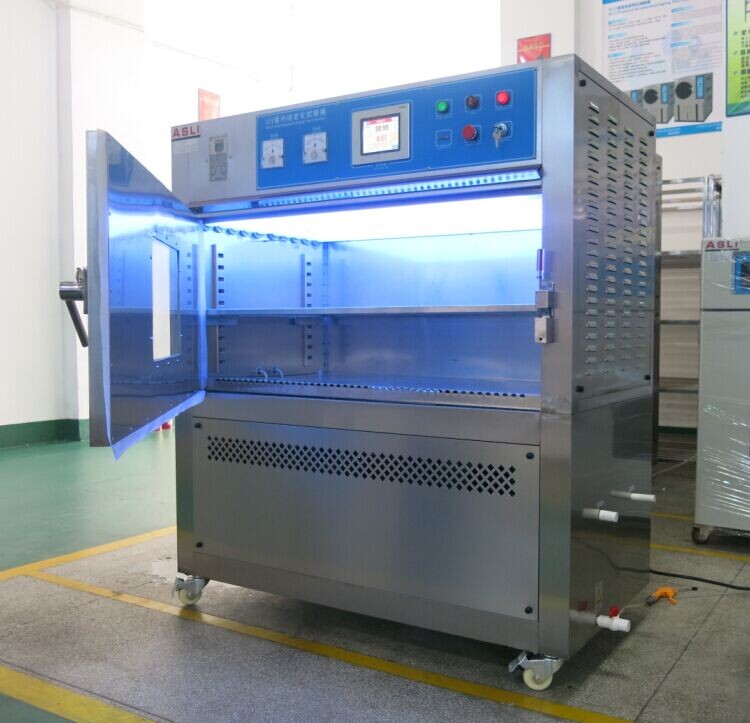

UV aging testing Usage and Electronic,AC220V Power acelerated aging tester
UV aging testing Usage and Electronic,AC220V Power acelerated aging tester Application:
hot sales rubber aging test chamber/uv lamps testing equipment/uv lamp equipment is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources. A variety of industrial products can make the reliability test, and this product can simulate the product in the sun, rain, humidity and dew conditions, including damage caused by bleaching, color, brightness down, powder, crack, blur, brittle, intensity decreased and oxidation.
UV aging testing Usage and Electronic,AC220V Power acelerated aging tester Technical parameters:
| Model | UV-290 |
| Internal Dimension WxHxD (cm) | 115x50x5 0 |
| External Dimension WxHxD (cm) | 150x150x55 |
| Applicable Standard | GB/T16422,GB/T5170.9 |
| Temperature Range | R.T.+10°C~+70°C |
| Temperature Fluctuation | ±0.5°C |
| Humidity Range | ≥95%R.H. |
| Environmental Temperature for Use | +5°C~+35°C |
| Test Light Source | UVA,UVB UV light |
| Wave Length of Test light Source (nm) | 280~400 |

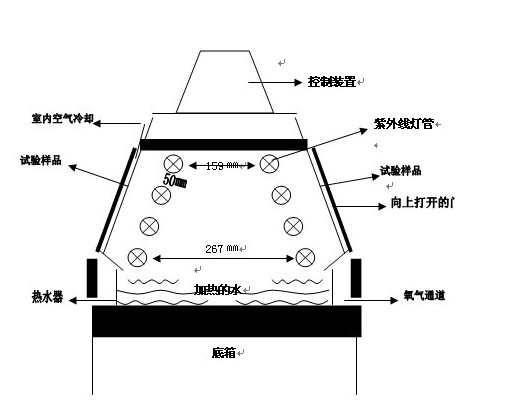

| Center Distance between Sample and Tube (mm) | 50±2 |
| Center Distance Between Tubes (mm) | 75±2 |
| Material of Internal Case | Stainless steel with sanding polish |
| Material of External Case | Stainless steel with sanding polish or painting coated |
| Heating the Humidifier | Electric-heat type steam generator ,heating and humidification |
| Safety System | Operation Interface | Digital smarts touch key input (Programmable) |
| Running Mode | Program/constant running type |
| Input | Black panel thermometer.PT-100 Sensor |
| Standard Configuration | 1 pc Stainless steel shelves |
| Safety Configuration | Protection of electric leakage, power outage when over-load, over-temperature protection, water short storage, ground lead protection |
| Power | AC220V 1ø 3 lines, 50HZ |
Ms. Doris Zhou(Sales)
ASLi (CHINA) TEST EQUIPMENT CO., LTD
.jpg)
Company Add.:Building C,JinHui Industrial Park, LiXin town,East City district 523125,DongGuan City,ChinaTel.:0086-769-23164266
Cell: 0086-13602389184
Fax:0086-769-22851784
Email:Doris@asLitesting.com
Website: http://www.asLitesting.com
skype: asli.test
whatsapp: 008613480444084
ASLi main products: Environmental chambers, temperature (humidity) chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in stability chamber,Vacuum oven,vibration tester, mechanical shock tester,environmental combined vibration chamber,etc
Product Tags:
|
|

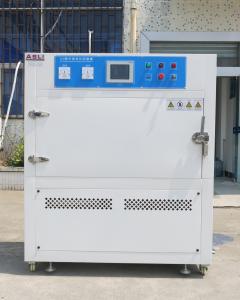

Electronic 304 Stainless Steel UV Aging Test Chamber 280 ~ 400 nm Wave Length Images
|
