Home > Temperature Humidity Chamber >

Constant Temperature Humidity Environmental Cycle Resistance Test Chamber

Product Categories

ASLi (CHINA) TEST EQUIPMENT CO., LTD

Contact Now

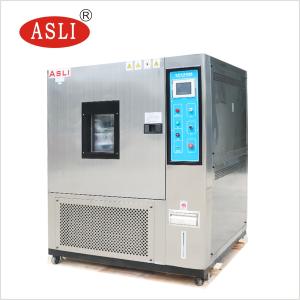

Constant Temperature Humidity Environmental Cycle Resistance Test Chamber

Name: Constant Temperature Humidity Environmental Cycle Resistance Test Chamber
Brand: ASLI
Price: 1 USD

China Constant Temperature Humidity Environmental Cycle Resistance Test Chamber wholesale

Brand Name : ASLI

Model Number : TH-150-E

Certification : CE, SGS, TUV, BV

Place of Origin : China

MOQ : 1 set

Price : negotiate

Payment Terms : T/T, Western Union

Supply Ability : 80 sets per month

Delivery Time : 25 workdays

Packaging Details : standard export plywood case

Internal Dimension : W600*H850*D800mm

Volume : 408L

Display : Programmable Touch Screen

Safety Device : Emergency stop button

control by computer : yes

Communication Interface : RS232

Test Hole : Dia. 50mm

Power : AC 380V

Contact Now

Constant Temperature Humidity Environmental Cycle Resistance Test Chamber

Product Description

Programmable Constant Reliable Thermal Cycling Test Machine are applicable for testing the performance indexes of aeronautic & astronautic products,ships,weapon, accdemies, motorcycle, information electronics,instruments & meters, materials, electronic engineering, electronic products, various electronic elements, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging,materials, plastics, medical and so on in high-low temperature or temperature and humidity alternation environment.

Constant Temperature Humidity Environmental Cycle Resistance Test Chamber

Constant Temperature Humidity Environmental Test Chamber Parameter

Model	TH-225(A~F)	TH-408(A~F)	TH-800(A~F)
Internal Dimension WxHxD (mm)	600x750x500	600x850x800	1000x1000x800
External Dimension WxHxD (mm)	1200x1900x1150	1200x1950x1350	1600x2000x1450
Temperature Range	Low Temperature(A:25℃ B:0℃ C:-20℃ D:-40℃ E:-60℃ F:-70℃) High Temperature 150℃
Humidity Range	20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is optional , need Dehumidifier)
Control Accuracy of Temperature and Humidity	±0.5℃; ±2.5% R.H.
Temperature Rising/Falling Velocity	Temperature rising approx. 0.1~3.0℃/min ; temperature falling approx. 0.1~1.0℃/min; ( Falling Min.1.5℃/min is optional)
Inner and Outer Material	Interior material is SUS 304# stainless steel, exterior is stainless steel or SEE cold-rolled steel with paint coated.

Constant Temperature Humidity Environmental Cycle Resistance Test Chamber Feature

1. The adjustable air outlet to keep the best temperature/humidity level regularity; the treble independent temperature security protector, it does not effect the other two because of the failure of one of them.

2. evaporator coils, the fin and the other connectors are all made of copper,coefficient of heat transfer is over 20, and it avoid the chemical couple from stainless steel or aluminum.

3. Depending on the strong control system, refrigeration system has perfect functions, the chamber can reach -90ºC on the condition that just depend on mechanical refrigeration.

4. The appearance break tradtional design which could match various colors and different appearance effect. "L" solid design is not only beautiful but also stands for "LIK" culture.

5. Large-scale temperature range: -40ºC~200ºC; 2.0mm thickness sheet metal.

6. Unique temperature and humidity controlled range.

7. (1)This serious equiments, our company adopt automatic watering and drawer type hidden water tank double-duty device.

(2) water recovery system, customers could decide whether recycle automatically or not.

(3) with water level sensor and could observe water level and watering automatically on the basis of water level.

8. high competitive factory price with high quality and power after-sales service.

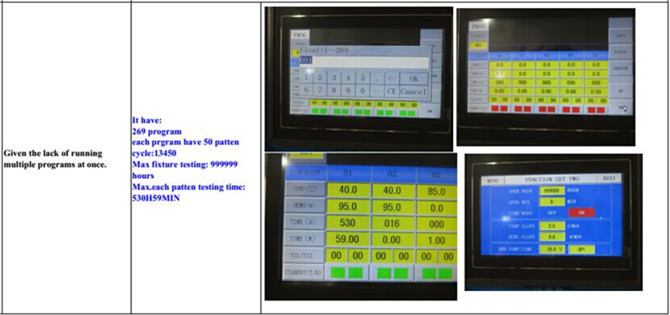

Detailed Images

Constant Temperature Humidity Environmental Cycle Resistance Test Chamber

Product Tags:

temperature and humidity chamber

humidity and temperature controlled chamber

Constant Temperature Humidity Environmental Cycle Resistance Test Chamber Images
