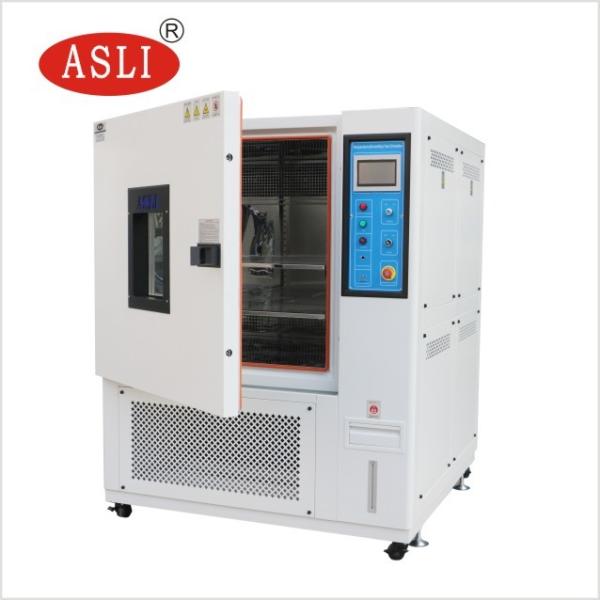

IEC 60068 Standard SUS304 Humidity Temperature Machine

Name: IEC 60068 Standard SUS304 Humidity Temperature Machine
Brand: ASLI
Price: 1 USD

China IEC 60068 Standard SUS304 Humidity Temperature Machine wholesale

Brand Name : ASLI

Model Number : TH-1000-F

Certification : CE

Place of Origin : CHINA

MOQ : 1 set

Price : negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 40 SETS PER MONTH

Delivery Time : 20~25days

Packaging Details : strongly wooden case

Power : 380/ 220V AC±10% 50/60Hz

Usage : Temperature And Humidity Test

Temperature range : -70~150C

Application : Instrument and other industry,Textile/Plastic/Metal,Auto,coating,plastic

Standard : IEC60068-2-1

Material : SUS304 Stainless Steel

Contact Now

Temperature Humidity Test Cabinet TH-1000-F.pdf

Temperature and Humidity Controller Machine IEC 60068 Standard Environmental Test Chamber

Product Description

temperature and humidity controller machine is applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-resistance. It is simple to operate and program easy to edit. It can show the set values and operative time.

Programmable Temperature Humidity Climatic Test Chamber applied to test the products quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care and so on.

Name	temperature and humidity controller machine
Model	TH-408(A~F)	TH-800(A~F)	TH-1000(A~F)
Internal Dimension WxHxD(mm)	600x850x800	1000x1000x800	1000x1000x1000
External Dimension WxHxD(mm)	1200x1950x1350	1600x2000x1450	1600x2100x1450
Temperature Range	Low Temperature(A:25℃ B:0℃ C:-20℃ D:-40℃ E:-60℃ F:-70℃) High Temperature 150℃
Humidity Range	20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is optional , need Dehumidifier)
Control Accuracy of Temperature and Humidity	±0.5℃; ±2.5% R.H.
Temperature Rising/ Falling Velocity	Temperature rising approx. 0.1~3.0℃/min ; temperature falling approx. 0.1~1.0℃/min; ( Falling Min.1.5℃/min is optional)
Optional Accessories	Inner door with operation hole , Recorder, Water Purifier, Dehumidifier
Power	AC380V 3 phase 5 lines , 50/60HZ

IEC 60068 Standard SUS304 Humidity Temperature Machine

Specifications

• LCD Touch Screen (TATO TT5166)
• PID Control of Temperature and Humidity
• Both Temperature and Humidity are Programmable (can have 100 pattern, each pattern has 999 segment)
• With Humidity Sensor

•With thermostats (prevent overheat)
• Test Hole (50 mm diameter)
• With Data Storage function by USB Flash Memory
• Protection (phase protection, overheat, over current etc)
• Water Tank with level detector
• Adjustable Shelf
• With RS485/232 output to computer
• Window Software
• Remote fault notification(optional)
• With Viewing Window
• Anti-condensation technology of the workroom .(Optional)
• User friendly three color LED indicator lamp ,easy to read working condition
