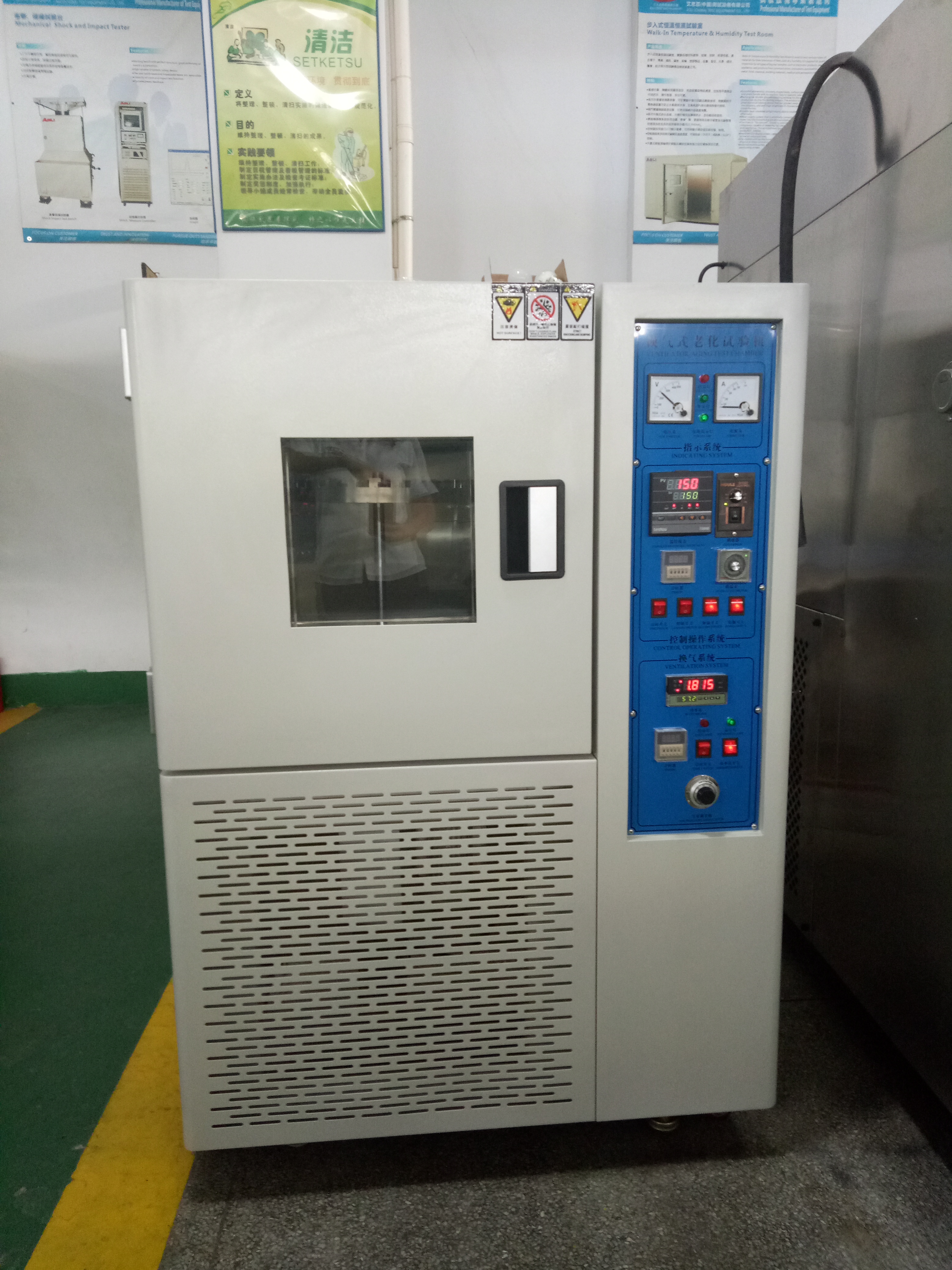

Plastic hot air exposure test ventilation aging test chamber
for Thermal endurance test
Application:
Environmental Ventilation Aging Test Chamber, RT+10℃~300℃ Aging Air Ventilation Test Equipment is used to test the material heat-resistance of polymer materials (plastics, plastic) and electronic parts, electrical insulation materials, such as: wire and cable sheathing, heat-shrinkable tubing, rubber or PVC materials.
Plastic hot air exposure test ventilation aging test chamber for Thermal endurance test technical parameters:
| Model | VAT-45 | VAT-60 | VAT-75 |
| Internal Dimension W×H×D(mm) | 450×500×450 | 500×600×500 | 600×750×600 |
| External Dimension W×H×D(mm) | 1000×1000×700 | 1150×1200×850 | 1350×1500×1000 |
| Internal and External Material | Material of the inner box is SUS 304# stainless steel, of the outer box is stainless steel or see cold-rolled steel with paint coated. |
| Temperature Range | RT+10℃~200℃ (300℃) |
| Uniformity of Distribution | ±2.0℃ |
| Air Ventilation Rate | 0-200 times/hr adjustable, with an ventilative adjustment button, Watt/Hour |
| Speed of Test Frame ( RPM) | 5-10 |
| Power | AC220V |
Ventilation Conversion Formula:
N=3590(X-Y)x2/VD△t
N: Ventilators;
V: Capacity of case;
X: Power consumed when open the air valve
Y: Power consumed when closed
△t: Temperature difference between working and environmental
Constant: 3590
Environmental Ventilation Aging Test Chamber Features:
1. Easy to operation and the box using CNC machining, elegant design, innovative and adopt counterproductive handle.
2. Internal material is high imported SUS304 mirror Stainless steel or 304B TIG, outside is A3 Steel spray, it improves the texture and appearance of cleanliness.
4. You can visually observe through huge Tempered glass windows with lights anytime and clearly.
5. Good uniformity of temperature
7. With D.50mm test holes on the left side for external test power line or signal line.
Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine.Environmental Ventilation Aging Test Chamber, RT+10℃~300℃ Aging Air Ventilation Test Equipment is one of our star product, and we had obtained the CE certification for this machine .
More products:
Customer Visit ASLi Company:
Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
Warranty: one year free warranty for whole set machine,lifelong time maintainance.
After-sale service: feedback within 8 hours after get the call or email.
Service:OEM service,Design service,Buyer lable service.
Certificate of these the machine:
China official 3rd party calibration report
CE certiification
ASLi main test equipments:
Environmental chambers, temperature (humidity) chamber,Thermal shock chamber, PCT /Hast chamber (Highly accelerated stress test chamber),Environmental Ventilation Aging Test Chamber, RT+10℃~300℃ Aging Air Ventilation Test Equipment, ESS chamber, Walk in stability chamber,Vacuum oven,electrodynamic vibration shaker,mechanical shock tester,environmental combined vibration chamber,etc
