Temperature Humidity Vibration Combined Climatic Test ChamberVibration Shaker Chamber
Thermal Combined Vibration Climatic Chamber Feature:
1. A combined structure of test chamber and refrigerating system boasting compact and graceful design; independent console
2. Original refrigerating compressor unit and its main accessories are internaltional famous brand;
3. LCD color touch screen controller, capable of automatic control of temperature humidity programs;
4. RS-232 communication. To meet customer's unique demands, users may choose from different models of vibration test bench to ensure that in addition to good cool,
5. Heat and air seal system, this vibration bench will also boasts remarkable effect of mechanical vibration
Temperature Combined Vibration Test Chamber Technical Parameters:
| Model | THV-408(A~F) |
| Internal Dimension WxHxD(mm) | 600x850x800 |
| External dimension WxHxD (mm) | 850x1950x2100 |
| Temperature Range | Low temperature: (A:25ºC; B:0ºC; C:-20ºC; D: -40ºC; E: -60ºC; F:-70ºC)
High temperature:100ºC(150ºC) |
| Humidity Range | 20%~98%R.H.(10%-98% R.H. / 5%-98% R.H. is a special optional condition, need Dehumidifier) |
| Indication Resolution / Distribution uniformity of temperature and humidity | 0.1ºC; 0.1% R.H/±2.0ºC; ±3.0% R.H. |
| Control Accuracy of temperature and humidity | ±0.5ºC; ±2.5% R.H. |
| Temperature Rising / Falling Velocity | Temperature rising approx. 0.1~3.0ºC/min ;
temperature falling approx. 0.1~1.5ºC/min;
(Falling velocity Min.1.5ºC/min is optional) |
| Internal and External Material | Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or see cold-rolled steel with paint coated. |
| Insulation Material | Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials |
| Cooling System | Wind cooling or water cooling; single segment compressor for -40ºC, double segment compressor for -70ºC |
| Protection Devices | Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection |
| Optional Accessories | Inner door with operation hole(Optional) , Recorder(optional), Water Purifier, Dehumidifier |
| Vibration Test Equipment | Choose proper vibration test bench according to customer's test condition, the technical parameters please take Electrodynamics Type Vibration Tester's parameters in this catalog for reference |
| Power | AC380V 3 phase 5 Lines, 50/60HZ |
Our advantages:
1.Professional technology support.
2.Full experience of large numbers containers loading in Chinese sea port.
3.Fast shipment by reputed shipping line.
4.Best service after shipment with emails.
5.We are professional test equipment manufaturer in China with excellent experience and skills, also have best quality products
Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine. Single Door Integrated Test System Thermal Combined Vibration Climatic Chamber is our star products , and we had obtained the CE certification for this machine .

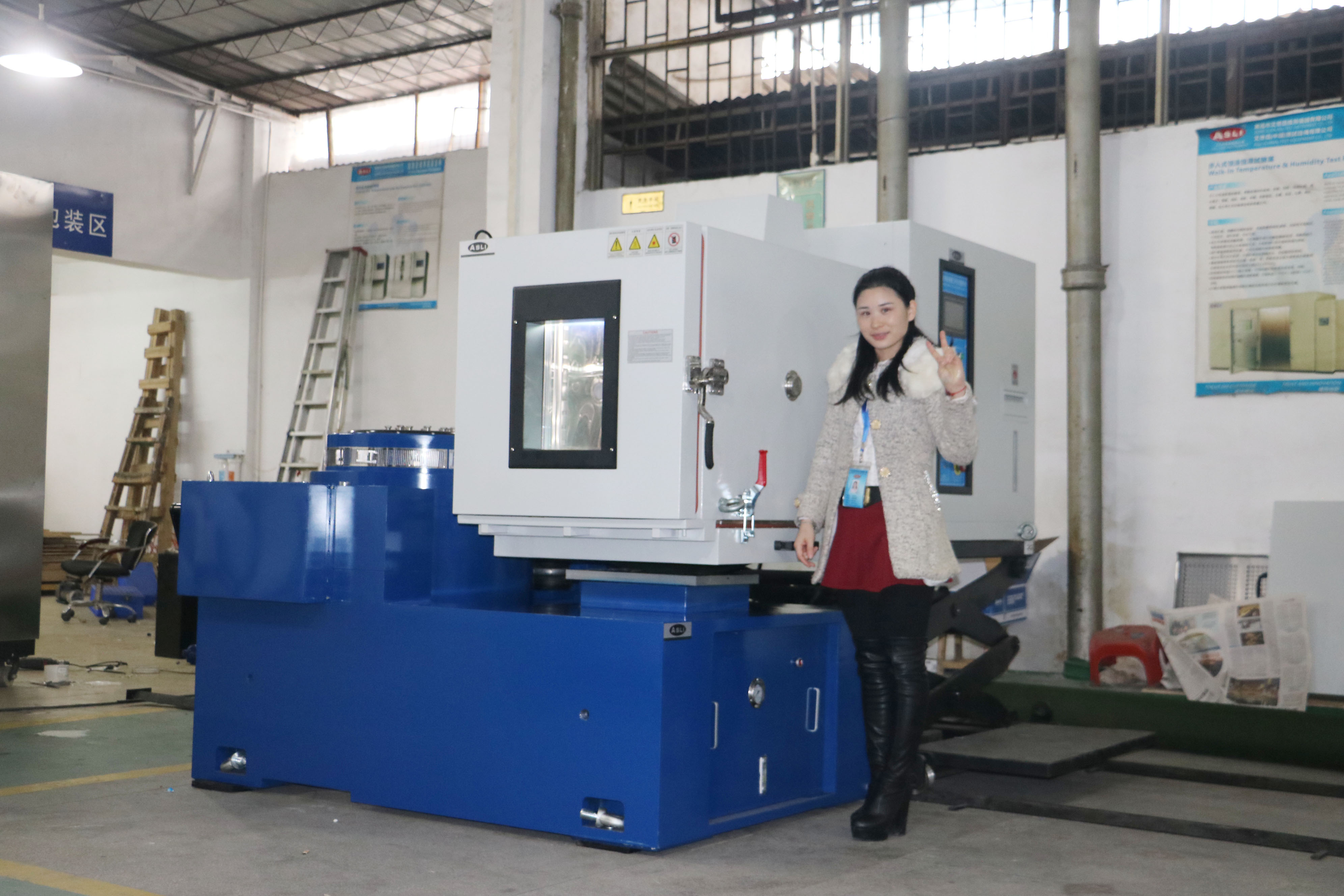

Combined Vibration Climatic Chamber Pictures:
Contact : Kris
Phone/whatsapp : +86 136 0238 4360
Email/Skype: sales2@aslitesting.com
Please kindly contact with us about the Climatic Test Chamber Vibration Shaker Chamber, thank you .
