Automatic Accelerated Shock And Mechanical Resistance Test Machine For Lithium Battery

Product Categories

ASLi (CHINA) TEST EQUIPMENT CO., LTD

Contact Now

Automatic Accelerated Shock And Mechanical Resistance Test Machine For Lithium Battery

Name: Automatic Accelerated Shock And Mechanical Resistance Test Machine For Lithium Battery
Brand: ASLI
Price: 1 USD

China Automatic Accelerated Shock And Mechanical Resistance Test Machine For Lithium Battery wholesale

Brand Name : ASLI

Model Number : MS SERIES

Certification : CE, ISO , SGS

Place of Origin : China

MOQ : 1 Set

Price : Negotiate

Payment Terms : T/T, Western Union

Supply Ability : 50 sets per year

Delivery Time : 50 workdays

Packaging Details : wooden case

max. sample size : 500x700mm

half sine wave : 150~15000(m/s2)

max. drop heting : 60mm

max. load : 50kg / 1000kg

shock frequency : 60 times per min

application : Lithium battery

Contact Now

E-catalog for Mechanical shock and impact tester.pdf

Application:
Mechanical Shock and Impact Testing Machine/Mechanical Shock Test Equipment is mainly used for small products for impact test, to assess the product's ability to withstand shock damage. It is often used in electronic components, electronic circuit boards and other environmental testing.

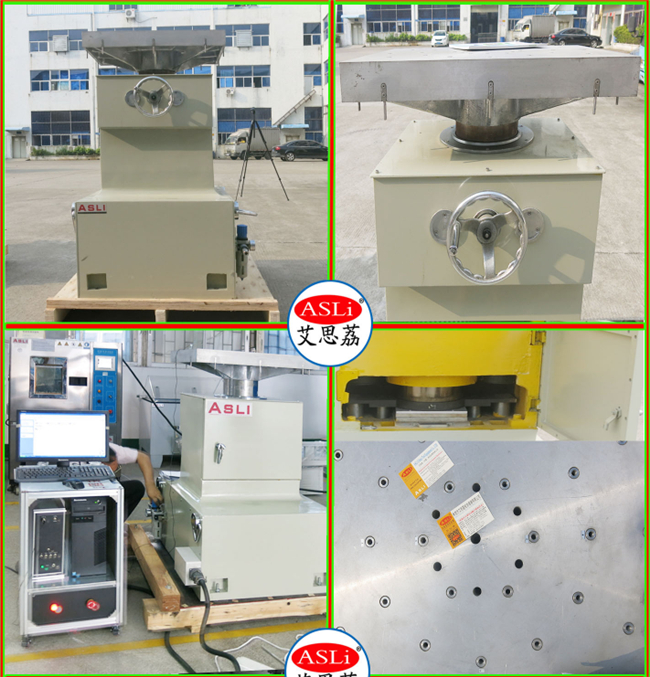

Shock Test bench
Shock and measure controller

Technical Parameters

Model	MS-50	MS-100	MS-200	MS-500		MS-800
Load capacity (kg)	50	100	200	500		800
pulse acceleration ( m/s2 )	50~1200	50~1000	50~1000	50~500		50~500
Pulse Width (ms)	20~3	20~3	20~3	20~3		20~3
Frequency (times /min)	10~80	10~80	10~80	10~80		10~80
Table Size (mm)	500*700	700*700	700*700	800*800		1000*1000
Max. Dropped Height (mm)	60	60	60	60		60
Pulse Type	Half Sine wave, (trapezoidal wave, and the sawtooth wave, square wave optional)
External Dimension WHD (mm)	80013001000	80013001000	85013501100		100013001900	100013001900
Weight (Kg)	1100	1250	2000		3000	3500
Protection Device	Door protection, over-load protection, zero signal protection
Power	AC 220V(±10%), 1phase 3 Lines ,50/60HZ; AC 380 V(±10%) ,3 phase 5 Lines,50/60HZ
Environmental Conditions	Temperature: 25℃±5.0℃ humidity: <85%(25℃)

Automatic Accelerated Shock And Mechanical Resistance Test Machine For Lithium Battery

Mechanical Shock Test Equipment Features:
1. Working bench with perfect structure, good uniformity of bench's acceleration.
2. High reliable of system, safety device.
3. The saw-tooth wave and trapezoidal wave, etc. extensible.
4. Capacity of crash and impact test function.
5. Optoelectronic feedback.

automatic accelerated shock and mechanical resistance test machine for Lithium battery
