Laboratory Constant Temperature Humidity Climate Test Chamber

Name: Laboratory Constant Temperature Humidity Climate Test Chamber
Brand: ASLI
Price: 1 USD

China Laboratory Constant Temperature Humidity Climate Test Chamber wholesale

Brand Name : ASLI

Model Number : TH-1000-F

Certification : CE, ISO , SGS

Place of Origin : China

MOQ : 1 Set

Price : Negotiate

Payment Terms : T/T, Western Union

Supply Ability : 50 sets per month

Delivery Time : 20 workdays

Packaging Details : wooden case

internal dimension : W1000*H1000*D1000mm

communication interface : RS485/232

test hole : 50 mm diameter

volume : 1000L

water tank : 25L

viewing window : 250*300mm

Contact Now

This series of products are equipped with such volumes as 250L, 400L, 600L, 1,000L and 2,000L. In terms of design, the environment-friendly refrigerant and the high-performance refrigerating system are adopted and the components and parts are from international famous brands. The unique humidifying system provides multiple choices for humidity range.

temperature cycling test chambers and humidity chambers. Our temperature and humidity test chambers are available in a variety of sizes and configurations, including benchtop / vertical/ walk in constant temperature humidity chambers. Temperature Range: -70°C to +180°C; Humidity range:10% to 98%R.H.

Product Description

Name	Temperature Humidity Climate Test Chamber
Model	TH-408(A~F)	TH-800(A~F)	TH-1000(A~F)
Internal Dimension WxHxD(mm)	600x850x800	1000x1000x800	1000x1000x1000
External Dimension WxHxD(mm)	1200x1950x1350	1600x2000x1450	1600x2100x1450
Temperature Range	Low Temperature(A:25℃ B:0℃ C:-20℃ D:-40℃ E:-60℃ F:-70℃) High Temperature 150℃
Humidity Range	20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is optional , need Dehumidifier)
Control Accuracy of Temperature and Humidity	±0.5℃; ±2.5% R.H.
Temperature Rising/ Falling Velocity	Temperature rising approx. 0.1~3.0℃/min ; temperature falling approx. 0.3~1.0℃/min; ( Falling Min.1.5℃/min is optional)
Optional Accessories	Inner door with operation hole , Recorder, Water Purifier, Dehumidifier
Power	AC380V 3 phase 5 lines , 50/60HZ

Specifications

• LCD Touch Screen (TATO TT5166)
• PID Control of Temperature and Humidity
• Both Temperature and Humidity are Programmable (can have 100 pattern, each pattern has 999 segment)
• With Humidity Sensor

•With thermostats (prevent overheat)
• Test Hole (50 mm diameter)
• With Data Storage function by USB Flash Memory
• Protection (phase protection, overheat, over current etc)
• Water Tank with level detector
• Adjustable Shelf
• With RS485/232 output to computer
• Window Software
• Remote fault notification(optional)
• With Viewing Window
• Anti-condensation technology of the workroom .(Optional)
• User friendly three color LED indicator lamp ,easy to read working condition

Pictures for reference:

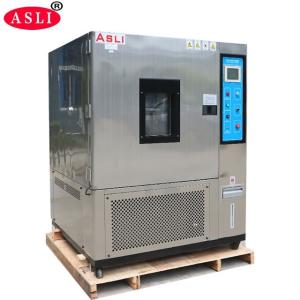

Laboratory Constant Temperature Humidity Climate Test Chamber
