Automatic 150 ~ 300 RPM Carton pakcage box Simulating Transportation Vibration Test Table
Usage-- Carton Transportation Vibration Test Table/ Vibrating Table
Package Transport Vibration Stability Tester is according to the United States and the European transport standards, and reference to the similar equipment improvement. Using eccentric bearing in rotating elliptical trajectory to simulate the vehicle or ship goods produced in the process of transportation vibration and impact.
Will test platform is fixed on the eccentric bearing, when eccentric bearing rotation, the test platform of the
whole plane will produce elliptic fluctuation before and after exercise, adjustment with eccentric shaft rotation
speed is equal to the speed of car or ship.
Features-- Carton Transportation Vibration Test Table/ Vibrating Table
- Have the cushion start function, in the work the noise is extremely low.
- Unique slideway structure makes clamping specimen conveniently and reliably.
- Digit display controller is precise and simple.
- Timer fuction is elegent appearance.
Automatic 150 ~ 300 RPM Carton pakcage box Simulating Transportation Vibration Test Table Technical Parameters:
| Model | AS-100 | AS-200 | AS-300 | AS-600 | AS-1000 |
| Load (Kg) | 100 | 200 | 300 | 600 | 1000 |
| Effective Area WxD (mm) | 1200×1000 | 1200×1000 | 1200×1300 | 1300×1400 | 1500×1500 |
| Weight (Kg) | 200 | 250 | 350 | 450 | 600 |
| External Dimension WxHxD (mm) | 1300×650×1300 | 1300×650×1300 | 1300×650×1400 | 1400×750×1500 | 1600×850×1600 |
| Rotating Speed (RPM) | 150~300 |
| Amplitude | 25.4mm(1inch), (Accord ASTM.IEC transport standard) |
| Time Setting (Approx.) | 0~999hours |
| Mode of Vibration | Reciprocating type |
| Power | AC220V or according to the equipment specification |
Test Features:
1. Unique design, easy to use
2. Low noise, with buffering function
3. Frame is powder coating, working table is stainless steel with aluminium alloyrail track.

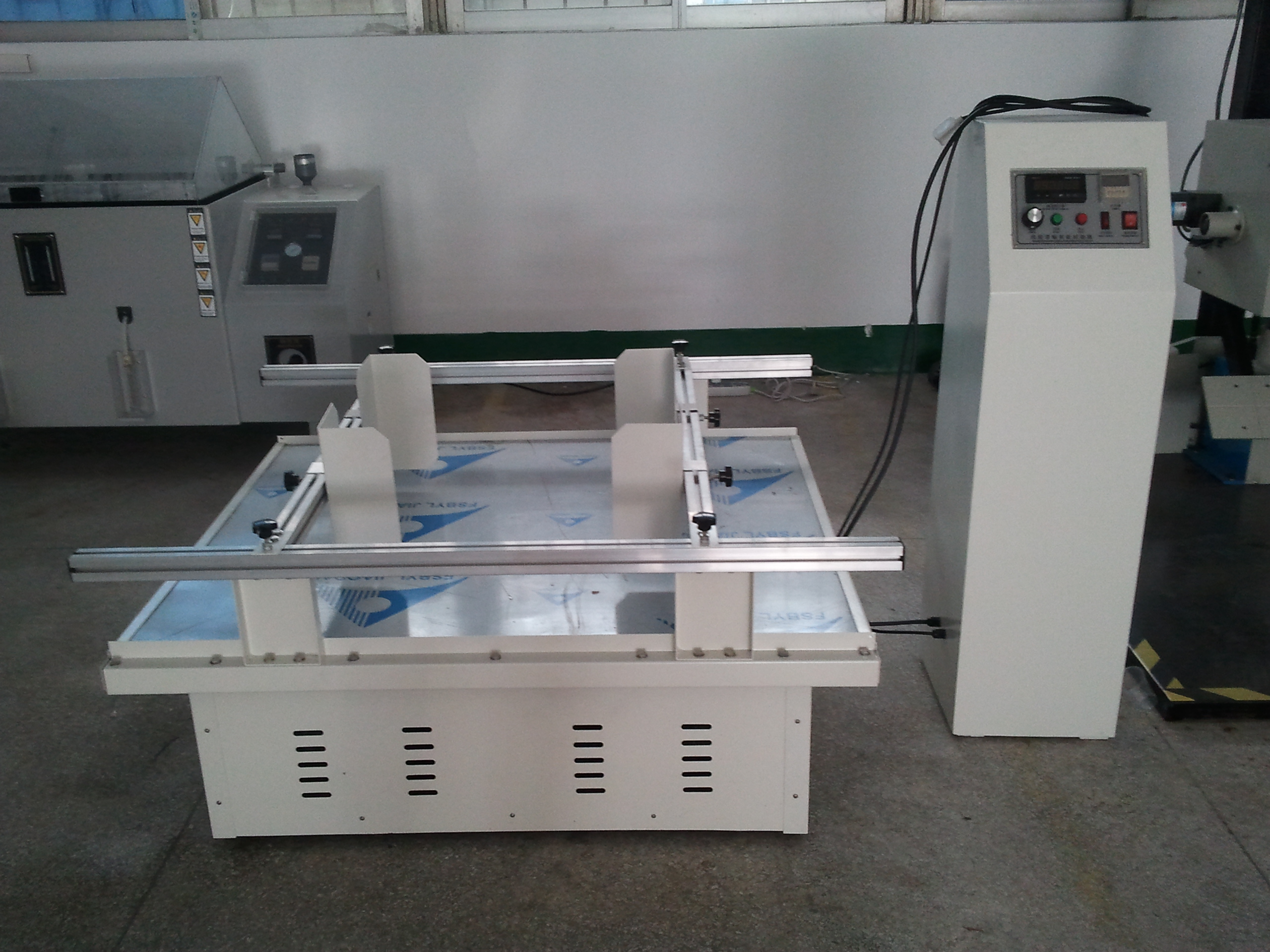

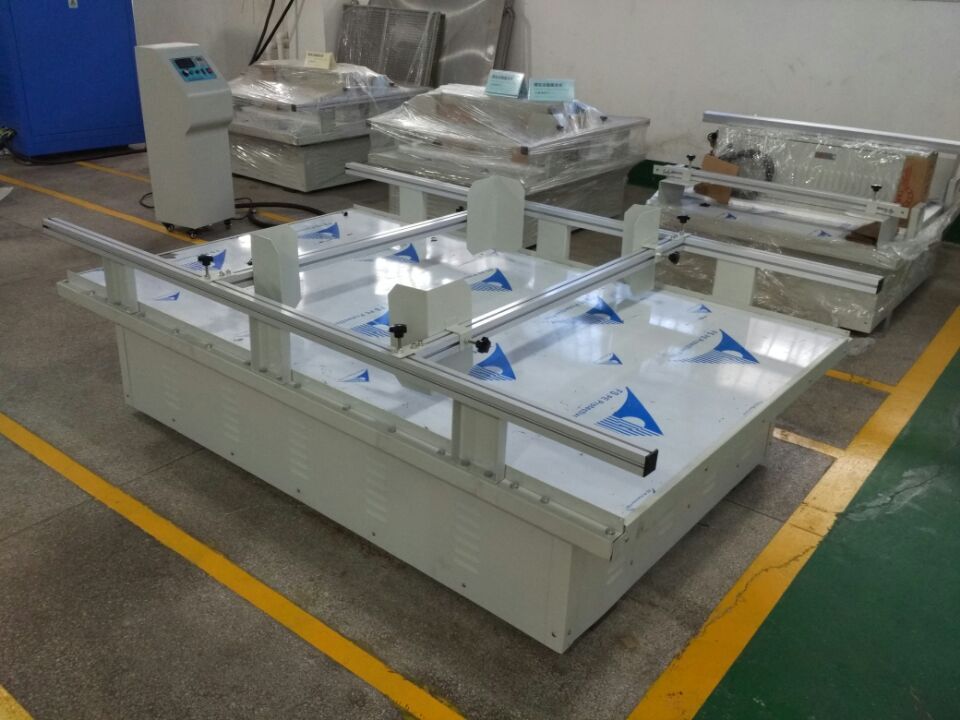

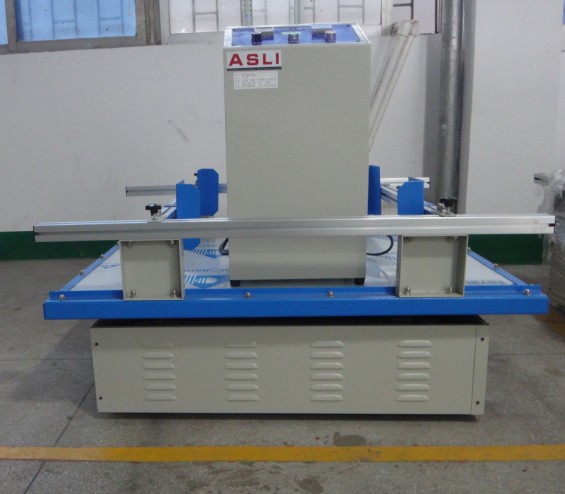

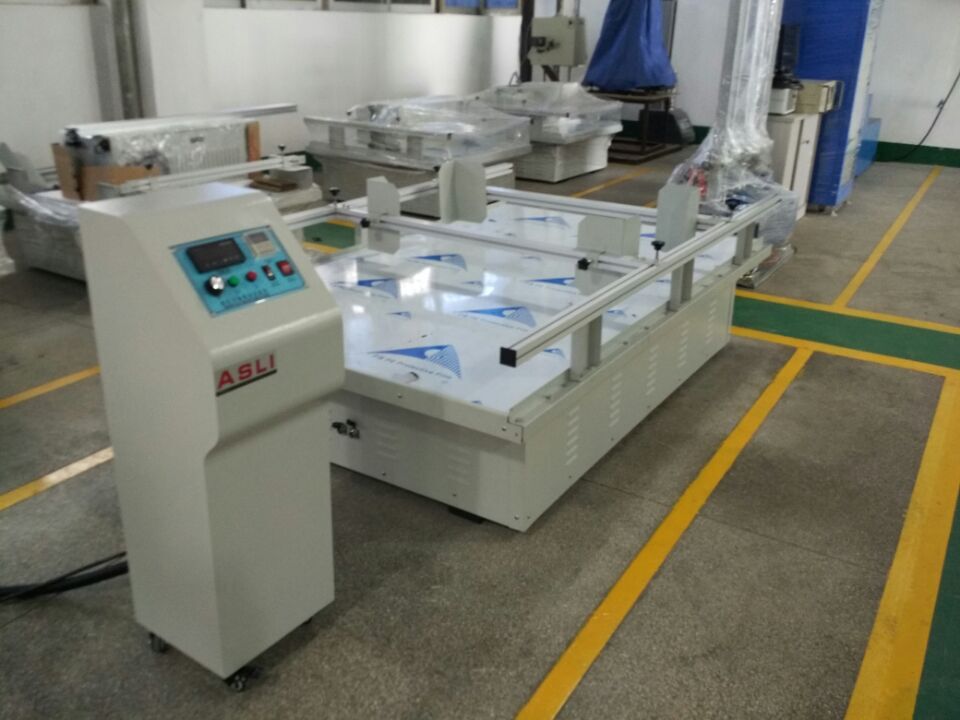

More Pictures:
Warranty: one year free warranty for whole set machine,lifelong time maintainance.
After-sale service: feedback within 8 hours after get the call or email.
Service:OEM service,Design service,Buyer lable service.
Certificate of these the machine:
China official 3rd party calibration report
CE certiification
For the package:
1. PP film first
2. Vacuum package
3. PP film again
4. 10mm thickness PU foam to avoid collision
5. stronged plywood case
6. Standard ASLI CASE MARK

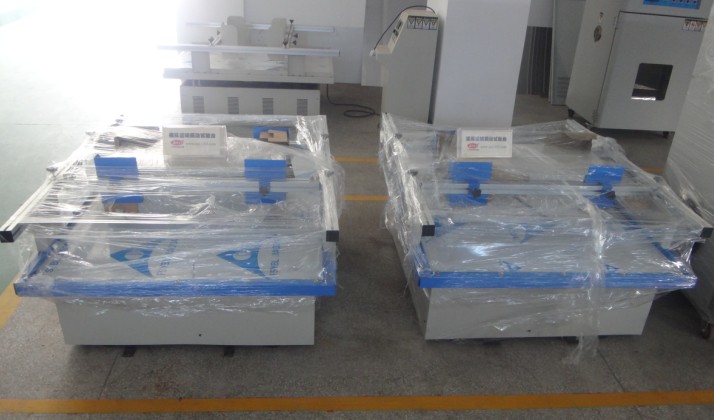

Packing Detail:
Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine. 150~300 RPM Carton Box Vibration Test, Transport Simulated Vibration Tester is our star products , and we had obtained the CE certification for this machine.
