Hydraulic Pneumatic Mechanical Shock Tester Meet Standard Mil - Std 810 Testing

Product Categories

ASLi (CHINA) TEST EQUIPMENT CO., LTD

Contact Now

Hydraulic Pneumatic Mechanical Shock Tester Meet Standard Mil - Std 810 Testing

Name: Hydraulic Pneumatic Mechanical Shock Tester Meet Standard Mil Std 810 Testing
Brand: ASLi
Price: 1 USD

China Hydraulic Pneumatic Mechanical Shock Tester Meet Standard Mil - Std 810 Testing wholesale

Brand Name : ASLi

Model Number : MS-200

Certification : CE ISO TUV SGS

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : T/T , Western Union

Supply Ability : 100 sets per month

Delivery Time : 20 - 25 days

Packaging Details : Standard Export Poly Wood Case Packaging

Product Name : Small Products Impact Testing Mechanical Shock Test Machine For Industrial

Max. Loading (kg) : 50 -1000

Function : Impact and shock testing

Power : ACV380V

Shock Frequency : 10 ~ 80 Hz

Weight (kg) : 1100 - 4500

Contact Now

Hydraulic Pneumatic Mechanical Shock Tester Manufacturer Meet standard Mil-std 810 testing

Application acclerated mechanical shock testing :
Mechanical Shock and Impact Tester is mainly used for small products for impact test, to assess the product's ability to withstand shock damage. It is often used in electronic components, electronic circuit boards and other environmental testing.
Shock Test bench
Shock and measure controller

mechanical shock tester manufacturer Technical Parameters:

Model	MS-50	MS-100	MS-200	MS-500		MS-800
Load capacity (kg)	50	100	200	500		800
pulse acceleration (m/s2)	50~1200	50~1000	50~1000	50~500		50~500
Pulse Width (ms)	20~3	20~3	20~3	20~3		20~3
Frequency (times /min)	10~80	10~80	10~80	10~80		10~80
Table Size (mm)	500X700	700X700	700X700	800X800		1000X 1000
Max. Dropped Height (mm)	60	60	60	60		60

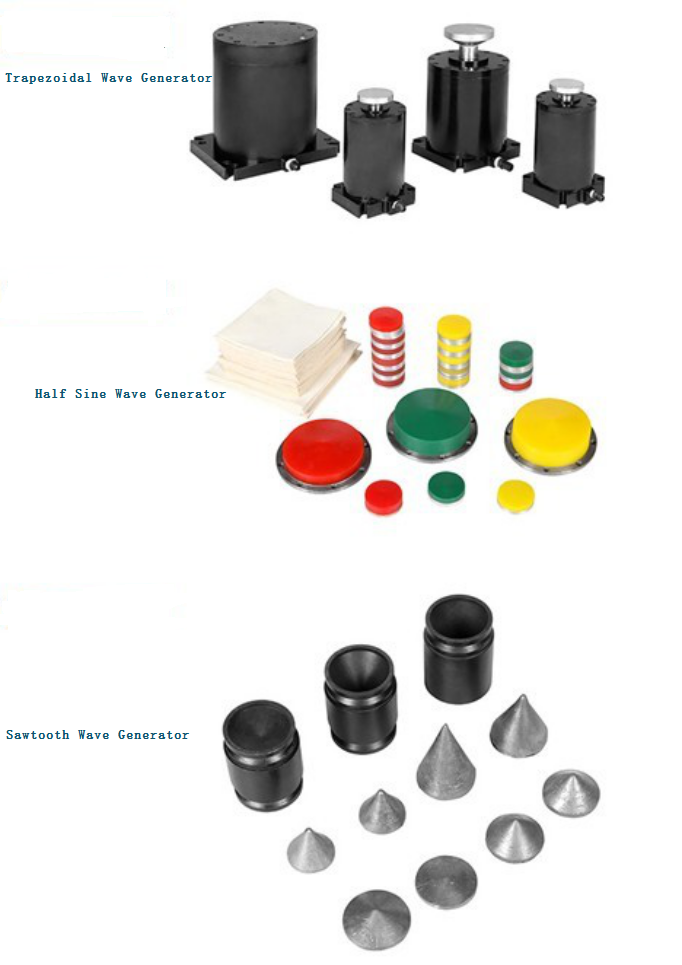

Pulse Type	Half Sine wave, (trapezoidal wave, and the sawtooth wave, square wave optional)
External Dimension WXHXD (mm)	800X1300X 1000	800X1300X 1000	850X1350X 1100		1000X1300X 1900	1000X1300X 1900
Weight (Kg)	1100	1250	2000		3000	3500
Protection Device	Door protection, over-load protection, zero signal protection
Power	AC 220V(±10%), 1∮3 Lines ,50/60HZ; AC 380 V(±10%) ,3∮ 5 Lines,50/60HZ
Environmental Conditions	Temperature: 25℃±5.0℃ humidity: <85%(25℃)

Mechanical Shock and Impact Tester Features:
1. Working bench with perfect structure, good uniformity of bench's acceleration.
2. High reliable of system, safety device.
3. The saw-tooth wave and trapezoidal wave, etc. extensible.
4. Capacity of crash and impact test function.
5. Optoelectronic feedback.

Hydraulic Pneumatic Mechanical Shock Tester Meet Standard Mil - Std 810 Testing

ASLI Exhibition showing for those mechanical shock tester

If you are interested in the Mechanical shock tester , please contact with us , thank you
