80 Liters Environmental Test Chambers For Temperature And Humidity Testing

Name: 80 Liters Environmental Test Chambers For Temperature And Humidity Testing
Brand: ASLI
Price: 1 USD

China 80 Liters Environmental Test Chambers For Temperature And Humidity Testing wholesale

Brand Name : ASLI

Model Number : TH-80-B

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 100 sets per month

Delivery Time : 15 workdays

Packaging Details : standard export plywood case

Internal Dimension : W400*H500*D400mmm

Volume : 80 Liters

Temperature Range : -60~150 ℃

Humidity Range : 20%R.H. ~98%R.H.

Material : SUS 304 Stainless Steel

Test Hole : Dia. 50mm

Heating Rate : 3 ℃/ Min

Cooling Method : Air Cooling

noise : less than 65db

communication interface : RS232

Contact Now

80 Liters Environmental Test Chambers For Temperature And Humidity Testing

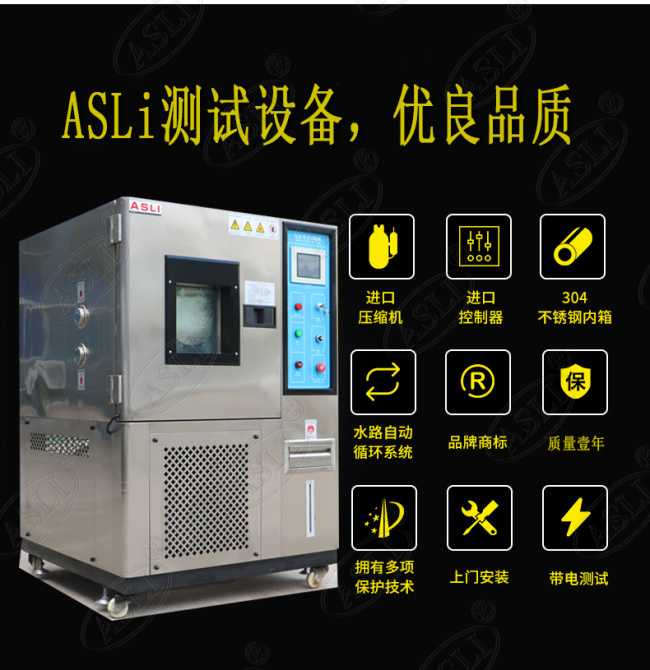

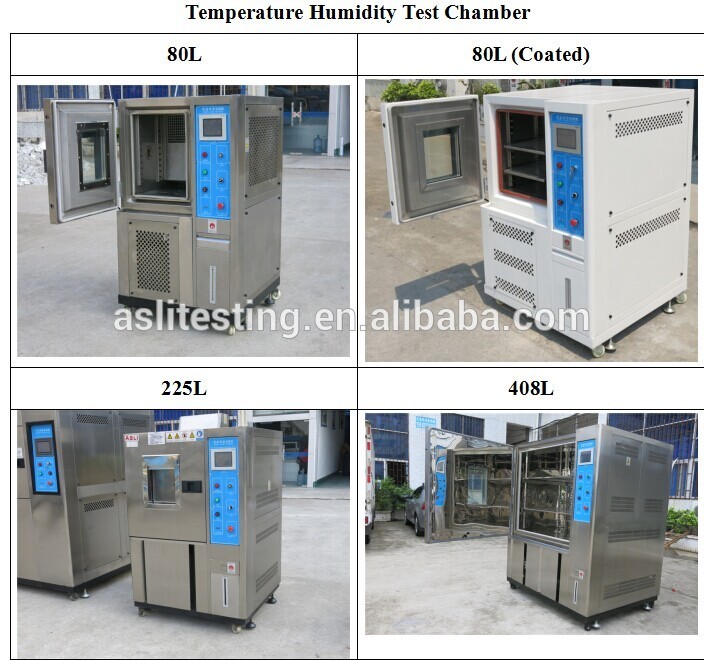

Product Pictures

80 Liters Environmental Test Chambers For Temperature And Humidity Testing

Environmental test chambers for temperature and humidity testing Technical Parameters

Model	TH-80(A~F)	TH-150(A~F)		TH-225(A~F)	TH-408(A~F)	TH-800(A~F)	TH-1000(A~F)
Internal Dimension WxHxD (mm)	400x500x400	500x600x500		600x750x500	600x850 x800	1000x1000 x800	1000x1000 x1000
External Dimension WxHxD (mm)	950x1650x950	1050x1750x1050		1200x1900x1150	1200x1950 x1350	1600x2000 x1450	1600x2100 x1450
Temperature Range	Low Temperature(A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C) High Temperature 150°C
Humidity Range	20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is optiona , need Dehumidifier)
Indication relolution/Distribution uniformity of temperature and humidity	0.1°C; 0.1% R.H/±2.0°C; ±3.0% R.H.
Control Accuracy of Temperature and Humidity	±0.5°C; ±2.5% R.H.
Temperature Rising/ Falling Velocity	Temperature rising approx. 0.1~3.0°C/min ; temperature falling approx. 0.1~1.0°C/min; ( Falling Min.1.5°C/min is optional)
Inner and Outer Material	Interior material is SUS 304# stainless steel, exterior is stainless steel or SEE cold-rolled steel with paint coated.
Insulation Material	Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials
Cooling System	Wind cooling or water cooling, (single segment compressor-40°C, double segment compressor -70°C)
Protection Devices	Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection
Optional Accessories	Inner door with operation hole , Recorder, Water Purifier, Dehumidifier
Compressor	French Tecumseh Brand, Germany Bizer Brand
Power	AC220V 1 phase 3 lines, 50/60HZ , AC380V 3 phase 5 lines , 50/60HZ
Approx. Weight (Kg)	150		180	250	320	400	450

80 Liters Environmental Test Chambers For Temperature And Humidity Testing

Product Description

Constant Temperature Humidity Climatic Simulation Stability Test Chamber is also called environment testing machine, used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.

Constant Temperature Humidity Climatic Simulation Stability Test Chamber Characteristic:

Stainless steel 304# 1.2mm exterior and interior
Energy-efficient refrigeration with exclusive eletronic expansion valve system
Specialized humidity generation and control
Unique thermal break construction for extreme testing
3" cable port with cover,two shelf & casters included
7" touch screen
Get improved performance, energy savings, plus USB or Internet access
Multiilingual display in English and Chinese or other Language can be customized
Alarm diagnostics and history, plus a "back trace" for troubleshooting.
Standard USB port for upload/download of programs and test data
Remote data and programming

Our service:

1.High quality guarantee.
2.Shipment with professional documents.
3.Packing as your request, with photo before shipment.
4.Reply within 48 hours and provide solution within 3 working days
5.Professional after-service from our engineers.
6.Warranty period 12 monthes.

80 Liters Environmental Test Chambers For Temperature And Humidity Testing
Our advantages:

1.Professional technology support.
2.Full experience of large numbers containers loading in Chinese sea port.
3.Fast shipment by reputed shipping line.
4.Best service after shipment with emails.
5.We are professional test equipment manufaturer in China with excellent experience and skills, also have best quality products

Our concept:

1.Client is first. We are trying to bring maximum profit to our clients and offer best quality products
2.Credibility is the most important.
3.Quality control is our life.
4.Great sense of responsibility.

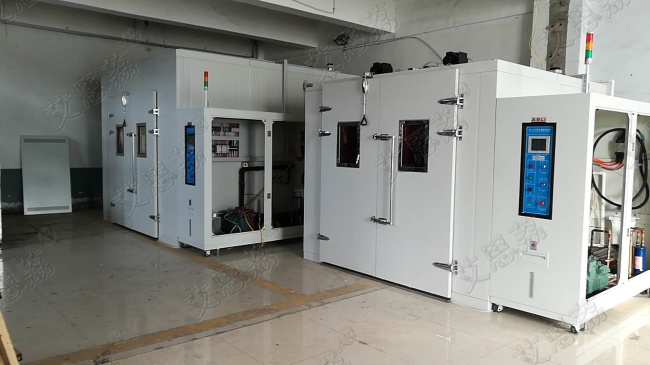

Customers' Visit ASLi Factory:

temperature and humidity chamber

humidity and temperature controlled chamber

80 Liters Environmental Test Chambers For Temperature And Humidity Testing Images
