Constant Temperature Humidity Chamber , Stability Environmental Test Chamber

Name: Constant Temperature Humidity Chamber Stability Environmental Test Chamber
Brand: ASLI
Price: 1 USD

China Constant Temperature Humidity Chamber , Stability Environmental Test Chamber wholesale

Brand Name : ASLI

Model Number : TH

Certification : CE, ISO , SGS

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 30 sets per month

Delivery Time : 25-30 working days

Packaging Details : standard poly wood case packaging

Brand : ASLi

Model : TH

Temperature Range : -70~150C

Humidity : 20%~98%

Material : Stainless Steel

Heating : 0.1~3.0C/min

Cooling : 0.3~1.0C/min

Power supply : 380V

Contact Now

Supplier constant temperature humidity stability environmental test chamber

Related Standard:

IEC600628 2-1/2/3/30, GB/T2423/5170/10586, JIS C60068, ASTM D4714, CNS3625/12565/12566

Uses:

Constant Temperature Humidity Chamber can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry,resist humidity and resist cold. That can define performance of material.

Characteristics:

1.Constant Temperature Humidity Chamber Use the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.
2.Constant Temperature Humidity Chamber control temperature&humidity well-distributed, precisely and steady.
3. Completely independent system separate for testing in high temperature, low temperature and constant temperature&humidity environment.

Technical Sheet

Model	TH-80(A~F)	TH-150(A~F)	TH-225(A~F)	TH-408(A~F)	TH-800(A~F)	TH-1000(A~F)
Internal Dimension WxHxD (mm)	400x500x400	500x600x500	600x750x500	600x850x800	1000x1000x800	1000x1000x1000
Enternal Dimension WxHxD (mm)	950x1650 x950	1050x1750 x1050	1200x1900 x1150	1200x1950 x1350	1600x2000 x1450	1600x2100 x1450
Temperature Range	Low Temperature(A:25ºC B:0ºC C:-20ºC D:-40ºC E:-60ºC F:-70ºC) High Temperature 150ºC
Humidity Range	20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need Dehumidifier)
Analytic Accuracy/ Distribution uniformity of temperature and humidity	0.1ºC; 0.1% R.H/±2.0ºC; ±3.0% R.H.
Control Accuracy of Temperature and Humidity	±0.5ºC; ±2.5% R.H.
Temperature Rising/Falling Speed Rate	Temperature rising approx. 0.1~3.0ºC/min / temperature falling approx. 0.1~1.5ºC/min; ( The Falling Speed Rate Min.1.5ºC per minute is a special optional condition)
Inner and Outer Material	Material of the inner box is SUS 304# stainless steel, of the outer box is stainless steel or SEE cold-rolled steel with paint coated.
Insulation Material	Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials
Cooling System	Wind cooling or water cooling/single segment compressor (-40ºC, double segment compressor -70ºC)
Protection Devices	Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection
Optional Accessories	Inner door with operation hole , Recorder, Water Purifier, Dehumidifier
Compressor	French Tecumseh Brand, Germany Bizer Brand
Power	AC220V 1ø3 lines, 50/60HZ , AC380V 3ø 5 lines , 50/60HZ
Approx. Weight (Kg)	150	180	250	320	400	450

Constant Temperature Humidity Chamber , Stability Environmental Test Chamber

Product Tags:

temperature and humidity chamber

temperature and humidity test chamber

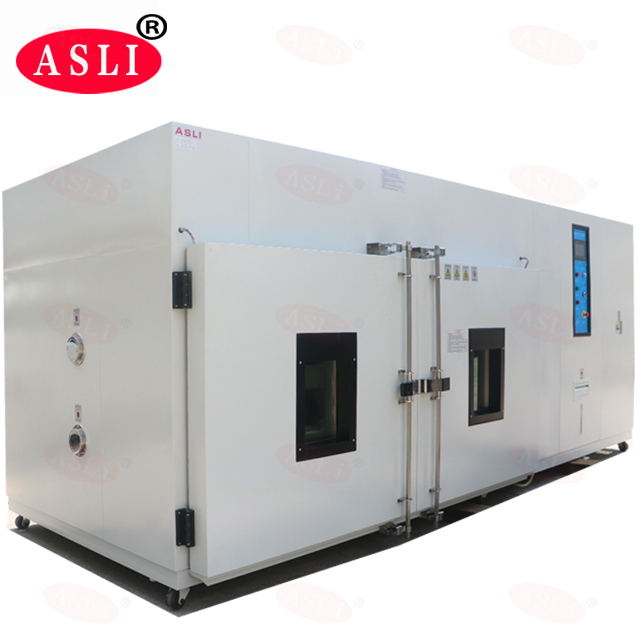

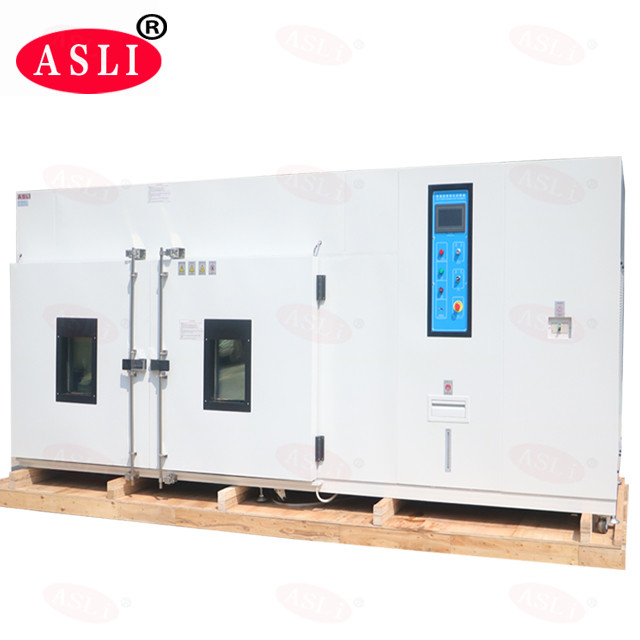

Constant Temperature Humidity Chamber , Stability Environmental Test Chamber Images
