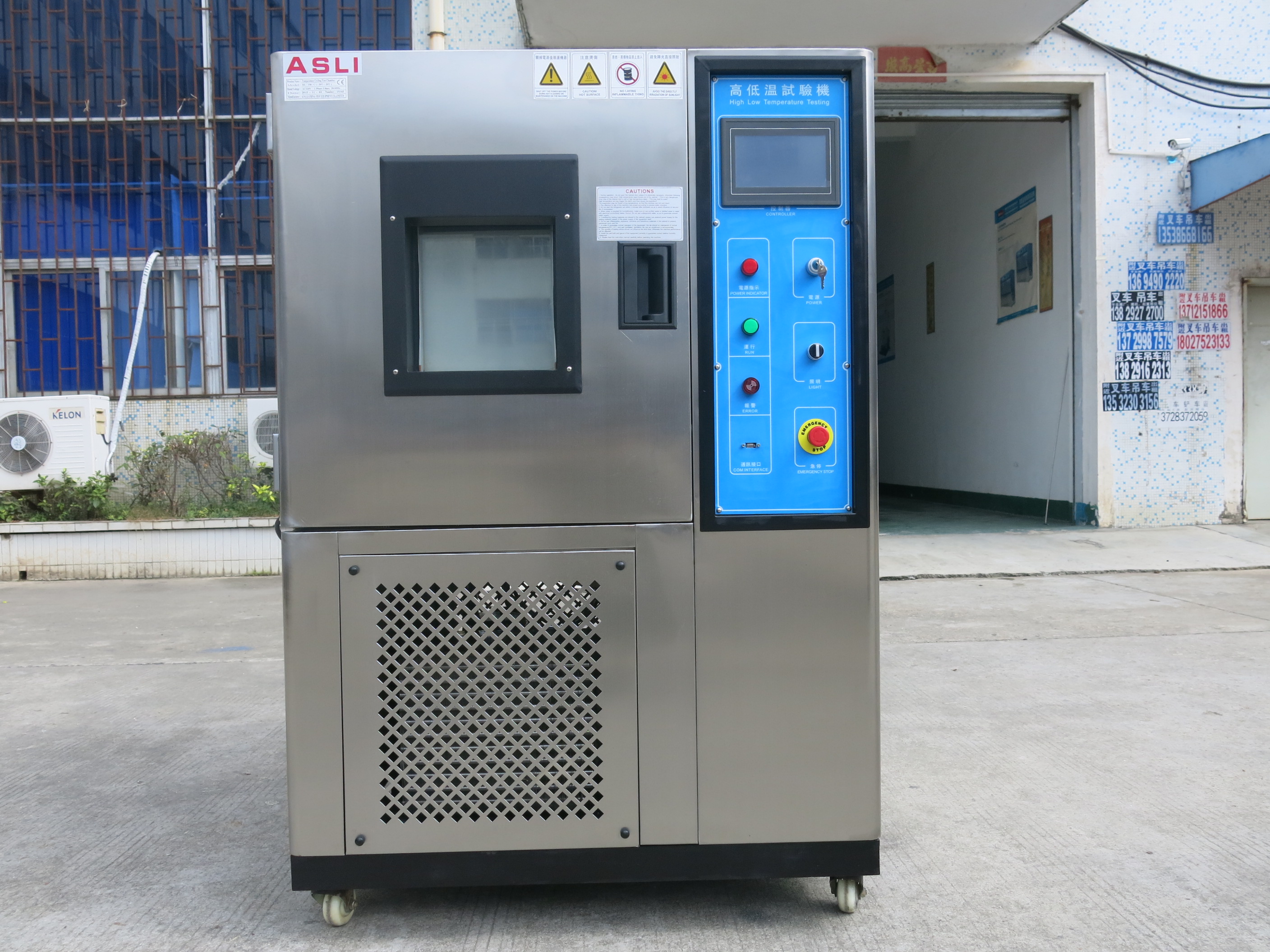

AC380V 20 degree falling/min Energy Saving Stability Test Chambers In Pharmaceutical For LED Testing
Technical Parameters of constant temperature humidity chamber:
| Model | HL-Customized |
| Internal Dimensions | Customized |
| External Dimensions | Customized |
| Temperature Range | Low Temperature D:-40℃; High Temperature 150℃ |
Analytic Accuracy/ Distribution
Uniformity of Temperature | 0.1℃ /±2.0℃ |
| Control Accuracy of Temperature | ±0.5℃ |
Temperature Rising/
Falling Speed Rate | Temperature rising approx. 0.1~3.0℃/min
temperature falling approx. 0.1~1.5℃/min;
( The Falling Speed Rate Min.1.5℃ per minute is a special optional condition) |
| Internal and External Material | Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or see cold-rolled steel with paint coated. |
| Insulation Material | Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials |
| Cooling System | Wind cooling or water cooling/single segment compressor(-40℃, double segment compressor -70℃) |
| Protection Devices | Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, Over-humidity and over-temperature protection switch, fuses, fault warning system |
| Optional Accessories | Inner door with operation hole(Optional), Recorder(optional),Dehumidifier |
| Compressor | French Tecumseh Brand, Germany Bizer Brand |
| Power | AC380V, 3 Phase 5 Lines,50/60HZ
|
1.Features about climatic test chamber price:
1. Graceful appearance, circularly shaped body, surface treated with mist strips, and plane handle with no reaction. Easy to operate, safe and reliable.
2. Rectangular double-glassed watching window for the observation of the test production during the testing process. The window is equipped with sweat-proof electrical heating device that can prevent water steam from condensing into droplets, and with high brightness PL fluorescent bulbs to provide light inside the box.
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. The French Tecumseh brand is used for the circulation system of the compressor, capable of removing the lubricant between the condensation pipes and capillaries. The environment-protecting coolant is
used for the whole series(R232,R404)
6. Imported LCD display screen is used for the control unit, capable of displaying the measured value as well as the set value and time.
7. The control unit has the functions of multiples segment program editing, and of quick or slope control of temperature and humidity.
8. Inserted mobile pulley, convenient for movement an relocation, with strong positioning screws.

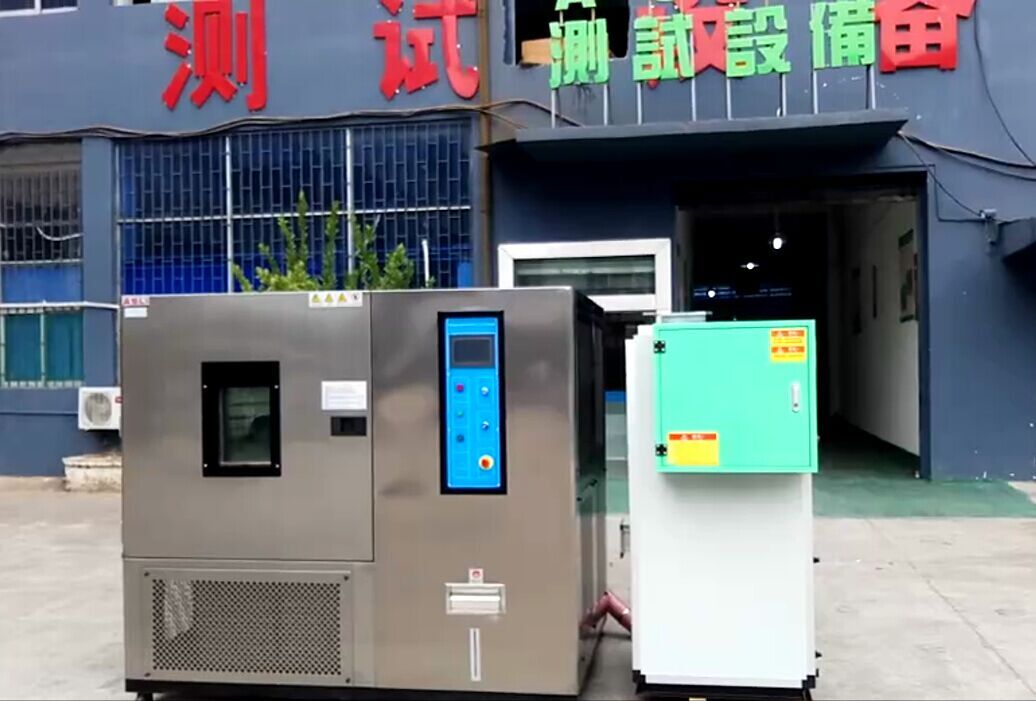

2.Chamber Constructure
2-1 Console Model Chamber:
2-1-1 The workspace is located at the left side or as to the user requirements;
2-1-2 Refrigeration unit cabinet located in the right side;
2-1-3 Electric control part is placed in the refrigeration unit cabinet, with operation panel on the front Chamber exterior is made of cold rolled steel with powder-painted, interior is stainless steel SUS304 #;
2-1-4 Thermal insulation material is flame retardant polyurethane rigid foam, of 100-150mm thickness.
2-2 Refrigeration Unit Cabinet:
2-2-1 Located in the right side of the chamber, and refrigeration compressors are installed on its frame,
2-2-2 Special door for maintenance & repair is provided.
2-2-3 Acoustical boards are used for lowing noise to maximum limit.
2-3 Chamber door:
2-3-1 Single door or double door, according to customer’s requirement
2-3-2 Silicon rubber is used for high sealing effect, high / low temperature resistance, anti-aging, and good
Sealed performance.
2-4 Lighting Device: two interior lights of 12W/36V, moisture-proof & explosion-proof, can be directly manual switch controlled from the outside.
2-5 Chamber Bottom:
2-5-1 Height distance to the floor is 200mm; chamber base board is slightly slant with drain hole for letting out the condensed water.
2-5-2 Interior chamber floor contains many stiffeners, to enable the floor load capacity ≥500Kg / m2, wheel impact ability≥1MT;
2-5-3 Movable entry ramp is provided.
2-6 Other constructure details
2-6-1 Door knob, with safety lock
2-6-2 Stainless steel Racks at least 4 with adjustable 24 to 36 trays

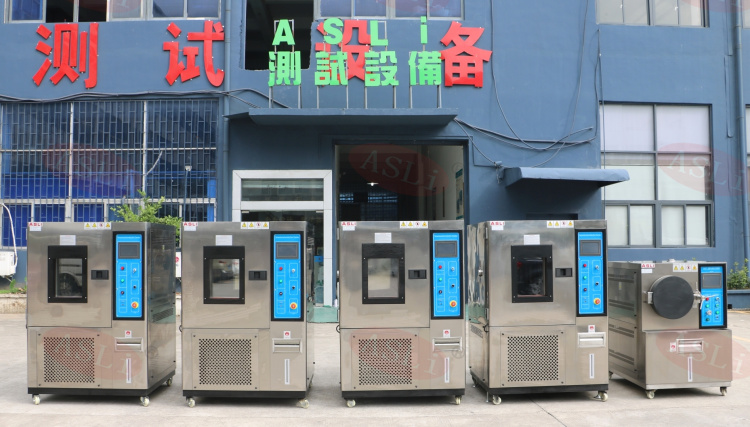

Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past 25 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine.HAST Un-Saturated Steam Chamber is our star products, and we had obtained the CE certification for this machine.
FAQ:
1. Are your company a trading one or a factory?
Factory ,28 years focusing on test instruments field,4 years exporting experience.
2. After an order is placed, when to deliver?
Generally about 20 workdays, If we have finished products, we can arrange shipment within 3 workdays.
Please be aware that our production lead times depend on specific items and item quantities.
3. What about the warranty with after - sales services?
12 months warranty.
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
4. What about the services and product' quality?
Service: OEM service,Design service,Buyer lable service.
Quality: Each instruments must be carried out 100% quality examination and test, the finished products must through a third party calibration institutions before shipping and delivery goods.
5. How to install and training?
If the products is easy to install and training, customers can learn the operation and maintenance manual to installation and use.
If the products is hard to use, customers can come ASLi factory to learn how to installation and use. And our engineers have a passport, we can go to overseas.
6.What's your main products?
Environmental chambers, temperature (humidity) chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in stability chamber,Vacuum oven,Altitude chamber,vibration test system, mechanical shock tester,environmental combined vibration chamber,etc.
Welcome our new and regular customers visit our factory for this temperature test chamber, and any inquiries please feel free to contact us !
