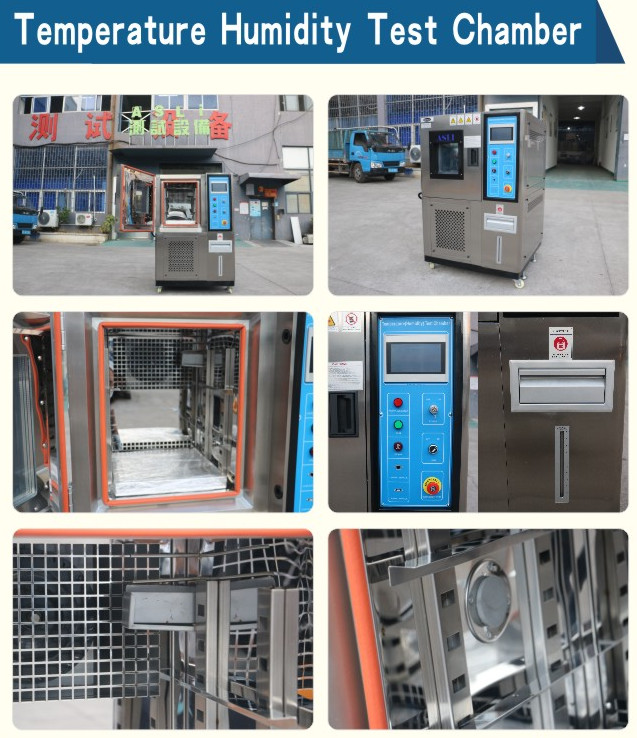

With Paint Coated.Environment Temperature Humidity Chamber For High-Low Cyclic Test
Features for temperature test chamber:
1. Graceful appearance, circularly shaped body, surface treated with mist strips and plane handle with no reaction. Easy to operate, safe and reliable.
2. Rectangular double-glassed watching window for the observation of the test production during the testing process. The window is equipped with sweat-proof electrical heating device that can prevent water steam from condensing into droplets, and with high brightness PL fluorescent bulbs to provide light inside the box.
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. The French Tecumseh brand is used for the circulation system of the compressor, capable of removing the lubricant between the condensation pipes and capillaries. The environment-protecting coolant is used for the whole series (R232,R404)
6. Imported LCD display screen, capable of displaying the measured value as well as the set value and time.
7. The control unit has the functions of multiples segment program editing, and of quick or slope control of temperature and humidity.
8. Inserted mobile pulley, convenient for movement an relocation, with strong positioning screws.
| Model | TH-80(A~F) | TH-150(A~F) | TH-225(A~F) | TH-408(A~F) | TH-800(A~F) | TH-1000(A~F) |
| Internal Dimension WxHxD (mm) | 400x500x400 | 500x600x500 | 600x750x500 | 600x850x800 | 1000x1000x800 | 1000x1000x1000 |
| Internal Dimension WxHxD (mm) | 950x1650x950 | 1050x1750x1050 | 1200x1900x1150 | 1200x1950x1350 | 1600x2000x1450 | 1600x2100x1450 |
| Temperature Range | Low Temperature(A:25℃ B:0℃ C:-20℃ D:-40℃ E:-60℃ F:-70℃) High Temperature 150℃ |
| Humidity Range | 20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need Dehumidifier) |
Analytic Accuracy/
Distribution uniformity
of temperature
and humidity | 0.1℃; 0.1% R.H/±2.0℃; ±3.0% R.H. |
| Control Accuracy of Temperature and Humidity | ±0.5℃; ±2.5% R.H. |
| Temperature Rising/Falling Speed Rate | Temperature rising approx. 0.1~3.0℃/min / temperature falling approx. 0.1~1.5℃/min; ( The Falling Speed Rate Min.1.5℃ per minute is a special optional condition) |
| Humidity control range |  |
| Inner and Outer Material | Material of the inner box is SUS 304# stainless steel, of the outer box is stainless steel or SEE cold-rolled steel with paint coated. |
| Cooling System | Wind cooling or water cooling/single segment compressor(-40℃, double segment compressor -70℃) |
| Protection Devices | Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection |
| Optional Accessories | Inner door with operation hole , Recorder, Water Purifier, Dehumidifier |
| Compressor | French Tecumseh Brand,Germany Bizer Brand |
| Power | AC220V 1ph 3 lines, 50/60HZ , AC380V 3ph 5 lines , 50/60HZ |
Air Supply Systems about climate chambers
1 Air Cycling Device: centrifugal fan, externally installed motor drive
2 Heating Mode: wire heaters made of a material called Nichrome; PID & SSR control
3 Cooling Mode: Air cooling
4 Humidification Mode: Stainless steel steam humidification; water purifier is provided for automatic
water supply while being connected to the chamber
5.Dehumidification Mode: by compressor& de-humidify device
Package:
PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past 25 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine.HAST Un-Saturated Steam Chamber is our star products, and we had obtained the CE certification for this machine.
If you have any quesiton with those temperature test chamber , please contact with us free , we will confirm to ASAP, thank you.
