Resistance Test Chamber Aging Tester Supplier Price Xenon Lamp Weather Resistant Testing Machine

Name: Resistance Test Chamber Aging Tester Supplier Price Xenon Lamp Weather Resistant Testing Machine
Brand: ASLI OR OEM
Price: 1 USD

China Resistance Test Chamber Aging Tester Supplier Price Xenon Lamp Weather Resistant Testing Machine wholesale

Brand Name : ASLI OR OEM

Model Number : TH 150

Certification : IE, ISO, ASMT, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, CSA and CEN

Place of Origin : Guangdong Province, China

MOQ : MOQ 1SET

Price : Negotiation

Payment Terms : T/T

Supply Ability : 45 SETS PER MONTH

Delivery Time : 10-40working days

Packaging Details : Standard export wooden package

Product name : aging chamber

Internal Dimension : W500xH600xD500(mm)

Temperature Range : Low Temperature: D:-40℃(Temperature according to customer’s requirement) High temperature: 150℃

Humidity Range : 10%~98% R.H.

Analytic Accuracy : 0.1℃; 0.1% R.H/±2.0℃; ±3.0% R.H

Control Accuracy of Temperature and Humidity : ±0.5℃; ±2.5% R.H.

Rising/ Falling Speed Rate : 0.1~3.0℃/min / temperature falling approx. 0.1~1.5℃/min

Power : AC220V 1ph 3 lines, 50/60HZ , AC380V 3ph 5 lines , 50/60HZ

Contact Now

Resistance Test Chamber Aging Tester Supplier Price Xenon Lamp Weather Resistant Testing Machine

Technical Parameters about Environmental Climatic Box:

Model	TH-150-D
Internal Dimension	W500xH600xD500(mm)
Internal Dimension	W1050xH1750xD1050(mm)
Temperature Range	Low Temperature: D:-40℃(Temperature according to customer’s requirement) High temperature: 150℃
Humidity Range	20%~98% R.H.
Analytic Accuracy/ Distribution uniformity of temperature and humidity	0.1℃; 0.1% R.H/±2.0℃; ±3.0% R.H.
Control Accuracy of Temperature and Humidity	±0.5℃; ±2.5% R.H.
Temperature Rising/ Falling Speed Rate	Temperature rising approx. 0.1~3.0℃/min / temperature falling approx. 0.1~1.5℃/min; ( The Falling Speed Rate Min.1.5℃per minute is a special optional condition)
Temperature humidity control chart
Material	Material of the inner box is SUS 304# stainless steel, of the outer box is stainless steel or SEE cold-rolled steel with paint coated, Insulation material is resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials
Cooling System	Wind cooling or water cooling/single segment compressor(-40℃, double segment compressor -70℃)
Protection Devices	Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection
Optional Accessories	Inner door with operation hole , Recorder, Water Purifier, Dehumidifier
Compressor	French Tecumseh Brand,Germany Bizer Brand
Power	AC220V 1ph 3 lines, 50/60HZ , AC380V 3ph 5 lines , 50/60HZ
Approx. Weight (Kg)	300

Application of programmable temperature chamber:

Climatic chamber is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products,
electric appliance, and products from communication, instrument,
automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.

Features for temperature humidity environmental testing chamber :

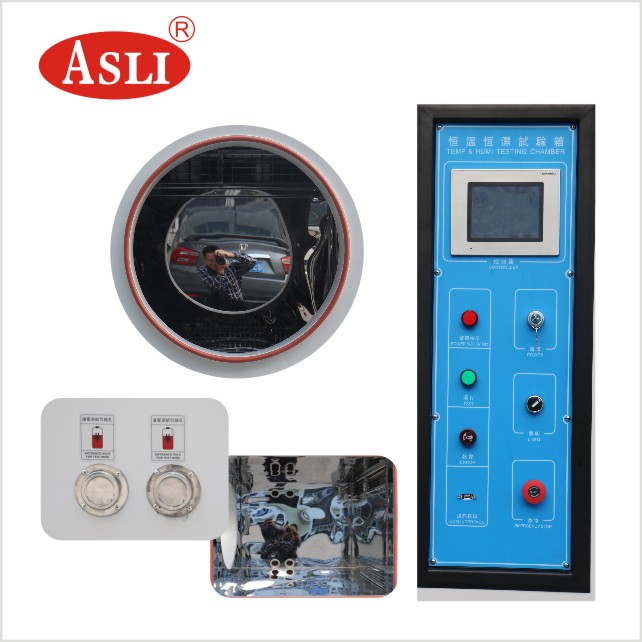

1. Temperature humidity test chamber about Graceful appearance, circularly shaped body, surface treated with mist strips and plane handle with no reaction. Easy to operate, safe and reliable.
2. Rectangular double-glassed watching window for the observation of the test production during the testing process. The window is equipped with sweat-proof electrical heating device that can prevent water steam from condensing into droplets, and with high brightness PL fluorescent bulbs to provide light inside the box.
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. The French Tecumseh brand is used for the circulation system of the compressor, capable of removing the lubricant between the condensation pipes and capillaries. The
environment-protecting coolant is used for the whole series (R232,R404)
6. Imported LCD display screen, capable of displaying the measured value as well as the set value and time.
7. The control unit has the functions of multiples segment program editing, and of quick or slope control of temperature and humidity.
8. Inserted mobile pulley, convenient for movement an relocation, with strong positioning screws.

Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc

Resistance Test Chamber Aging Tester Supplier Price Xenon Lamp Weather Resistant Testing Machine

FAQ:
1. Are your company a trading one or a factory?
Factory ,28 years focusing on test instruments field,4 years exporting experience.

2. After an order is placed, when to deliver?
Generally about 20 workdays, If we have finished products, we can arrange shipment within 3 workdays.
Please be aware that our production lead times depend on specific items and item quantities.

3. What about the warranty with after - sales services?
12 months warranty.
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.

4. What about the services and product' quality?
Service: OEM service,Design service,Buyer lable service.
Quality: Each instruments must be carried out 100% quality examination and test, the finished products must through a third party calibration institutions before shipping and delivery goods.

5. How to install and training?
If the products is easy to install and training, customers can learn the operation and maintenance manual to installation and use.
If the products is hard to use, customers can come ASLi factory to learn how to installation and use. And our engineers have a passport, we can go to overseas.

6.What's your main products?
Environmental chambers, temperature (humidity) chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in stability chamber,Vacuum oven,Altitude chamber,vibration test system, mechanical shock tester,environmental combined vibration chamber,etc.

Welcome our new and regular customers visit our factory, and any inquiries about environmental chamber please feel free to contact us !
